Wired 4.3 inch Video Doorbell Intercom System Handheld Door phone Monitor Waterproof Outdoor Camera Color 700TVL Night Vision
Price range: £33.71 through £189.95
Free Delivery Worldwide When You Spend £9.99 or Over
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
- Hign-concerned Chemical: None
- Plug Type: Eu plug,US PLUG,AU Plug,UK Plug
- Size: 27*18*8.5cm
- Doorbell: Yes
- Material: ABS, Aluminum alloy
- Power: DC 15V/1.5A
- Sensor Size(Inch): 1/3
- Resolution: > 420 TV Line
- Power: 220v
- Camera: COLOR
- Model Number: Digital High-definition WiFi Video Intercom
- IP Camera Interface: No
- Access Control: None
- Waterproof: Yes
- Samrt Home Interface: No
- Technology: analog
- Installation: Wall Mounting
- Connection Type: Wired
- Zone Input: None
- Display Screen Type: COLOR
- Type: intercom system
- Viewing Angle (°): 65
- Kit Configuration: One to Two video doorphone
- Display Screen Size(inch): 7
- Answering Mode: Handheld
- Camera Sensor type: CMOS
- Connection Method: Wired
- Brand Name: OBO HANDS
- Origin: Mainland China
- Smart home platform: None
- Certification: CE
- Resolution: 800 * 480
- Night Vision: IR night vision
- Ringtone: 25 ringtones
- Power Adapter: EU plug as default (EU/US/UK/AU for optional)
- Volume of Ringtone: Adjustable
- Volume of Intercom: Adjustable
- Screen Brightness: Adjustable
- Type 1: Wired video doorbell intercom system
- Type 2: 4.3 inch Wired Video door phone
- Type 3: Smart Home Video doorphone
Warm reminder: If you need the whole set of products in the main picture, please choose package C or package D. Package A is only the M4 single product, and package B is only the V43E168 single product. The details and color pictures are uniquely described. It is not that we sent less or wrong. Thank you
Wired 4.3 inch video intercom doorphone system handheld door bell monitor waterproof outdoor camera color screen 700TVL night vision for home apartment for 1 or 2 rooms

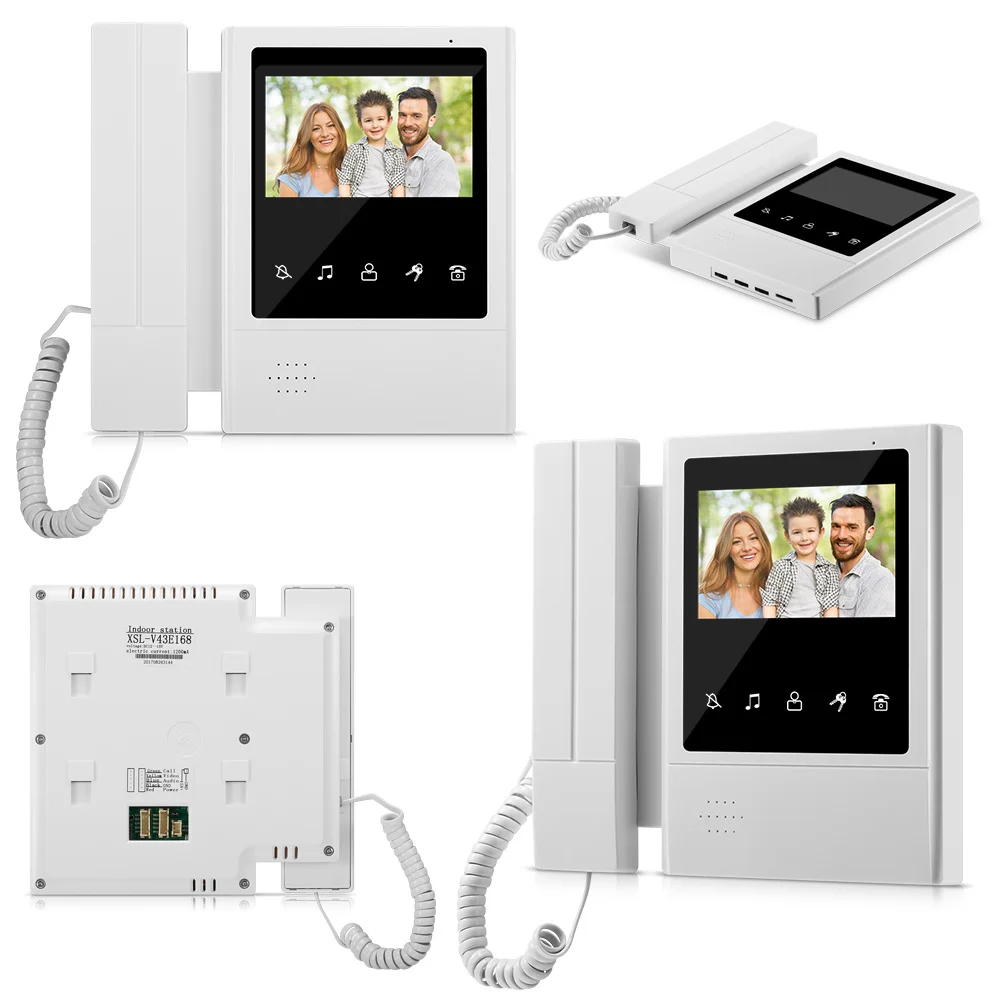

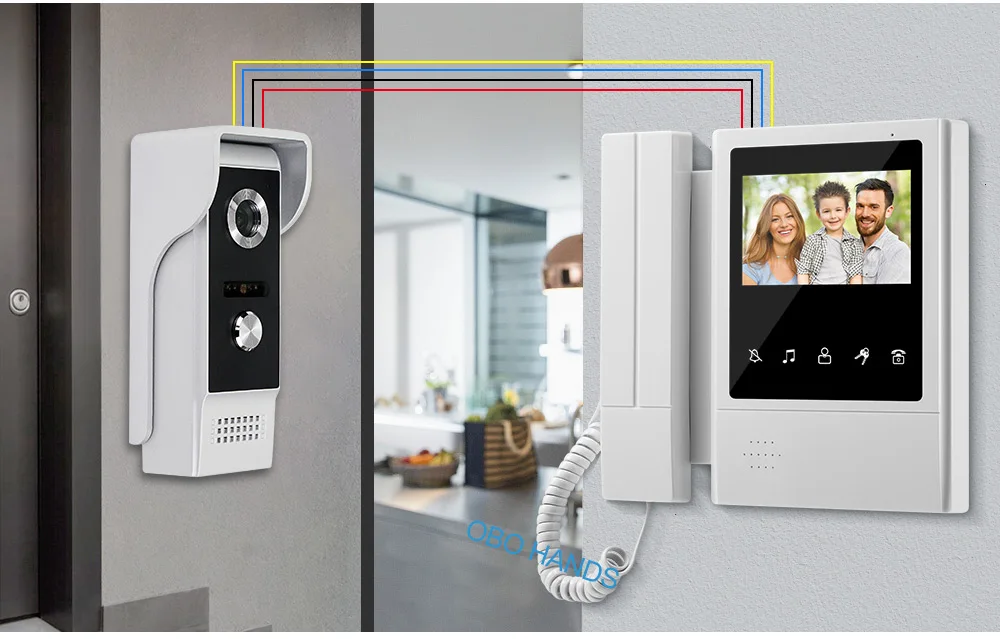

4.3 Inches Video Door Phone Intercom System
Outdoor Camera Color Indoor Monitor
Product Specification:

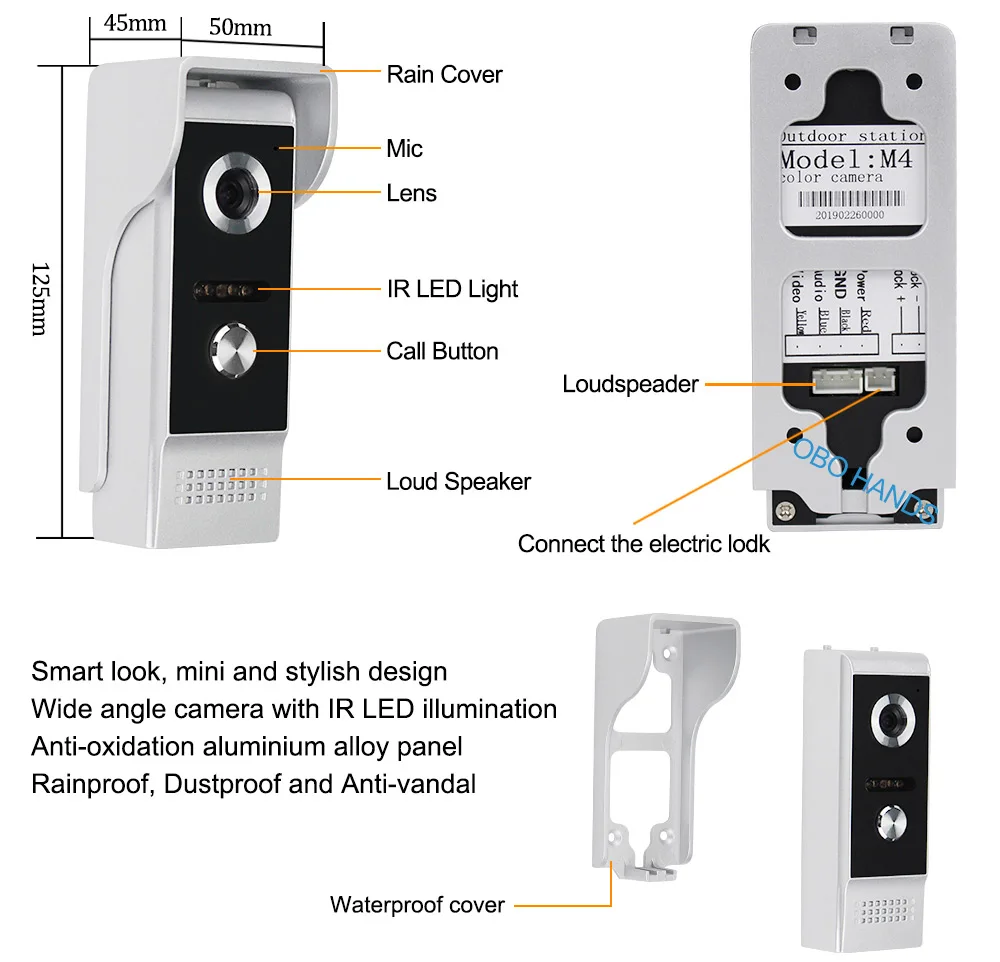

Outdoor Camera (Outdoor Call Panel)
Camera: 700 line CMOS color digital camera with super backlight compensation
Camera Lens: CMOS
Resolution: 700 TV Line
Night Vision: infrared LED Light, visible within 1.5 meters
Vision Angle: 70° wide angle
Power: supply from indoor unit
Power Consumption: Standby: <2W; Working: <5W
Camera: 30W
Wiring Method: RVV4 core wire connection
Working Temperature: -20°C ~ +50°C
Material: ABS plastic, aluminum wire drawing
Waterproof: IP55 waterproof, equipped with a rainproof cover
Installation: Wall mounted

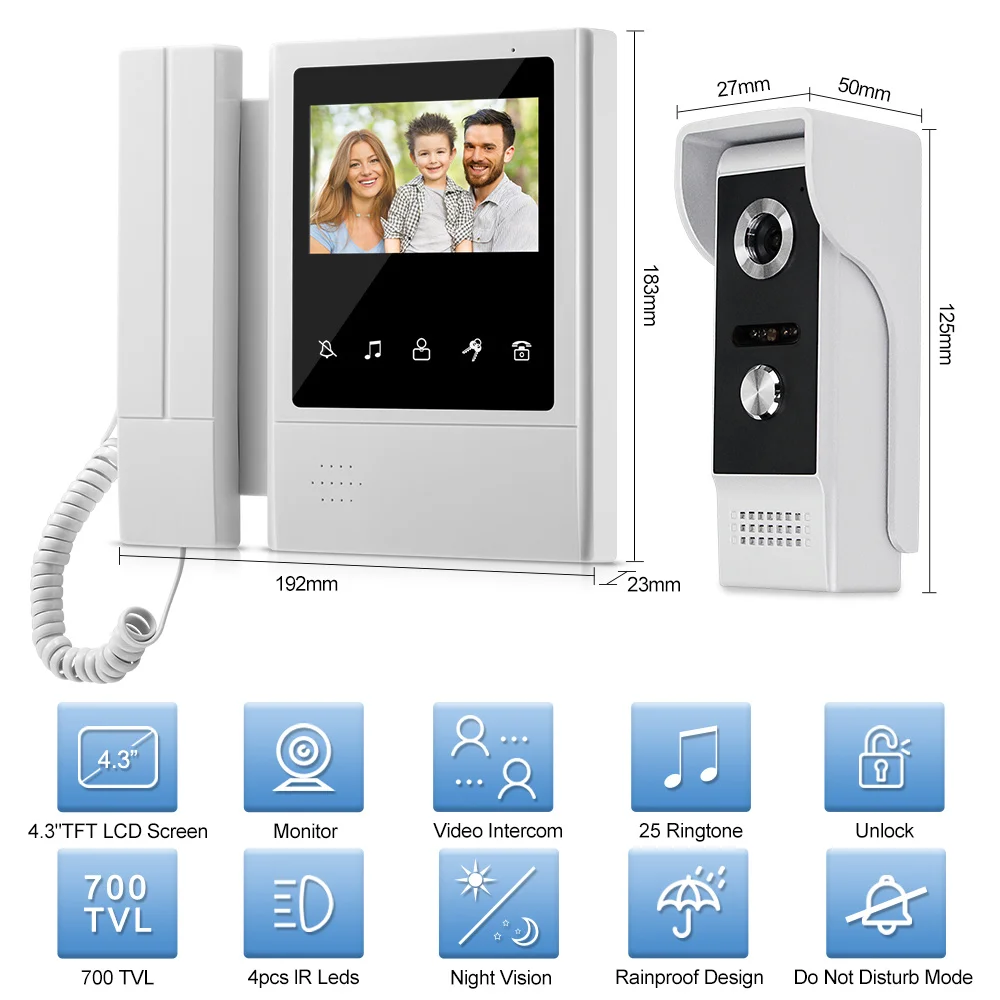

Dimension: 50*27*125mm(L/W/H)

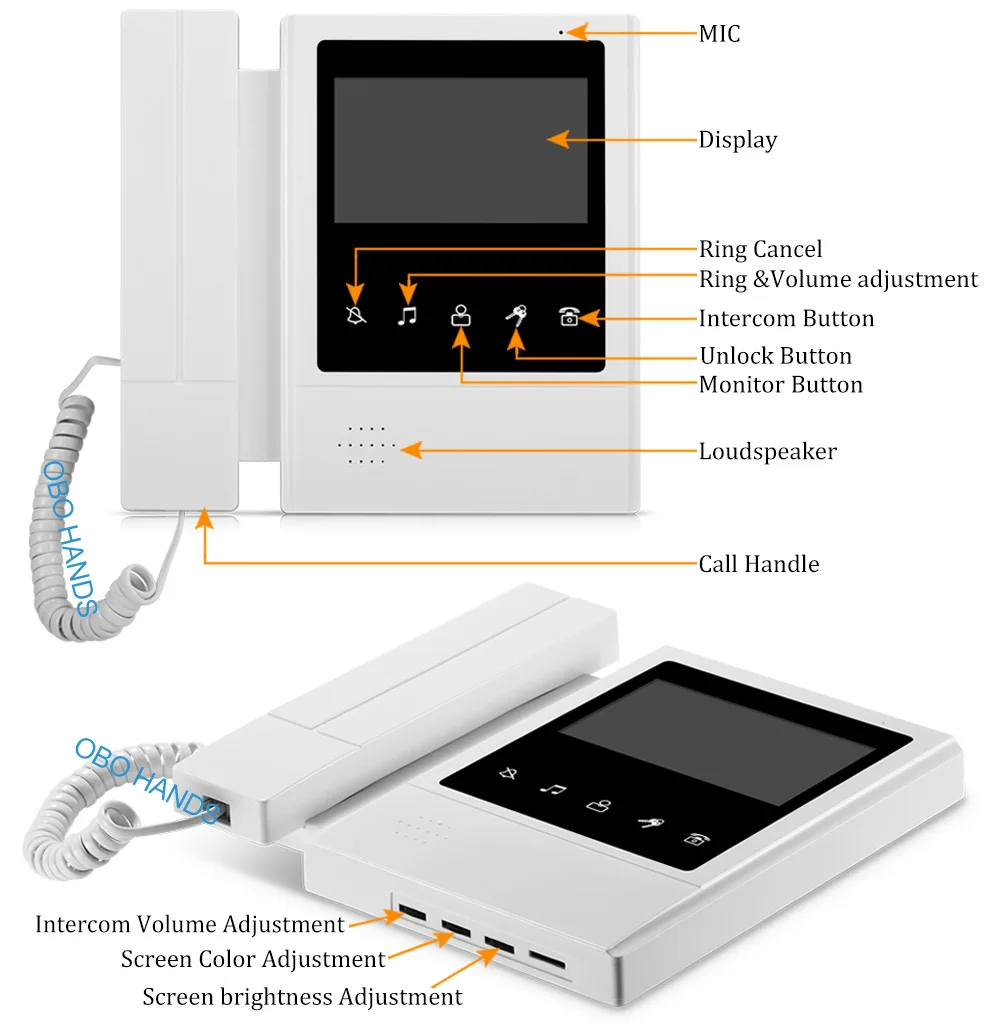

Indoor Monitor (Indoor unit / Indoor screen)
Screen: 4.3 inches color TFT-LCD screen
Effective Pixels (Resolution): 800 * 480
Intercom / Monitor Time: 90 s
Ringtone: 25 chord ringtones optional
Adapter Input: AC100 – 240V / 50-60HZ
Adapter Output: DC 15V / 1.2A
Room to Room intercom: Yes
Wiring Method: RVV4 wire connection
Multiple Intercom: up to 4 indoor monitors
Multiple doorbell: up to 2 outdoor units
Use Distance: not over 100m
Material: ABS plastic
Working Temperature: -35 °C ~ 55 °C
Installation: Wall mounted

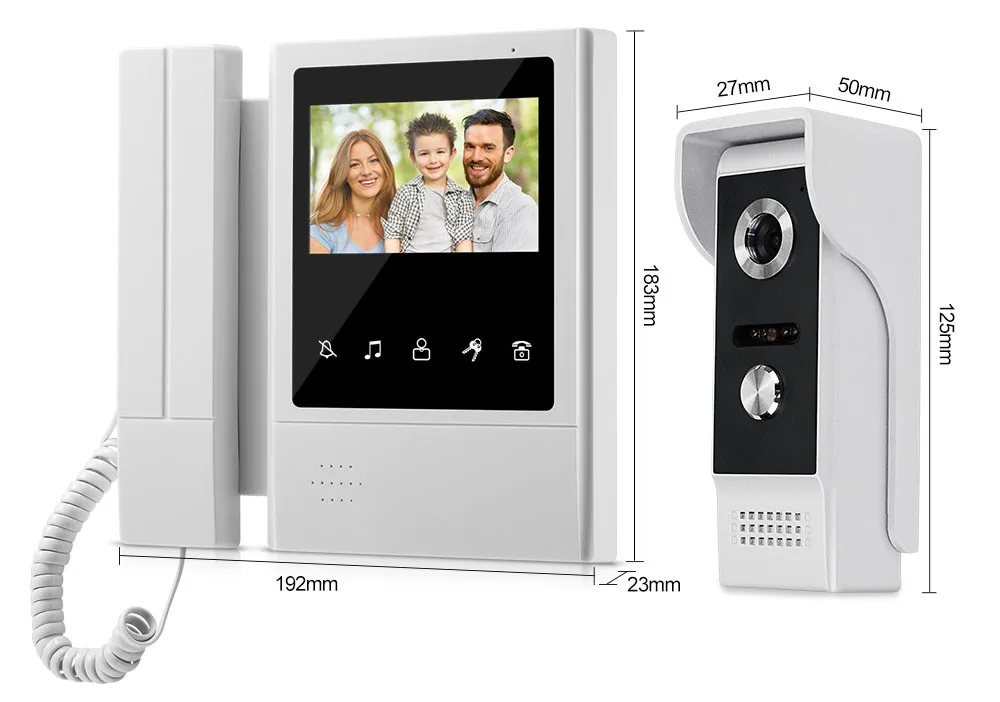

Dimension: 192 * 183 * 23 mm (L*W*H)
Function: intercom, monitoring, unlocking, door bell, etc.
1. Cabling standards.
Use international 5-wire (or 4-wire) structure design, these indoor monitors only can work with such outdoor unit which is 5-wire or 4-wire connection type.

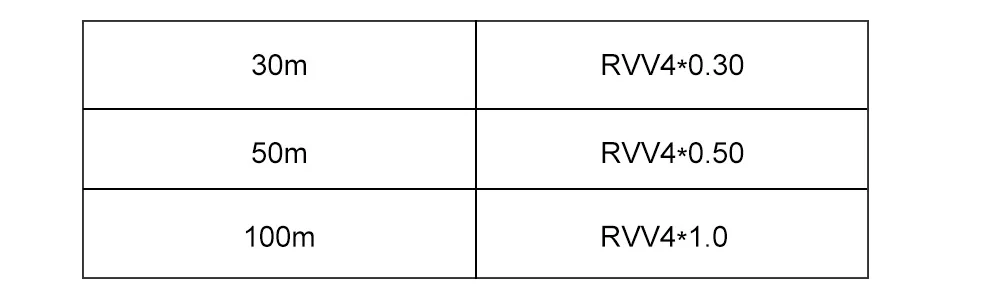

The max distance between indoor monitor and outdoor unit is about 100 meters. Different distance, use different diameter cable. Please check the following form to choose corresponding cable.

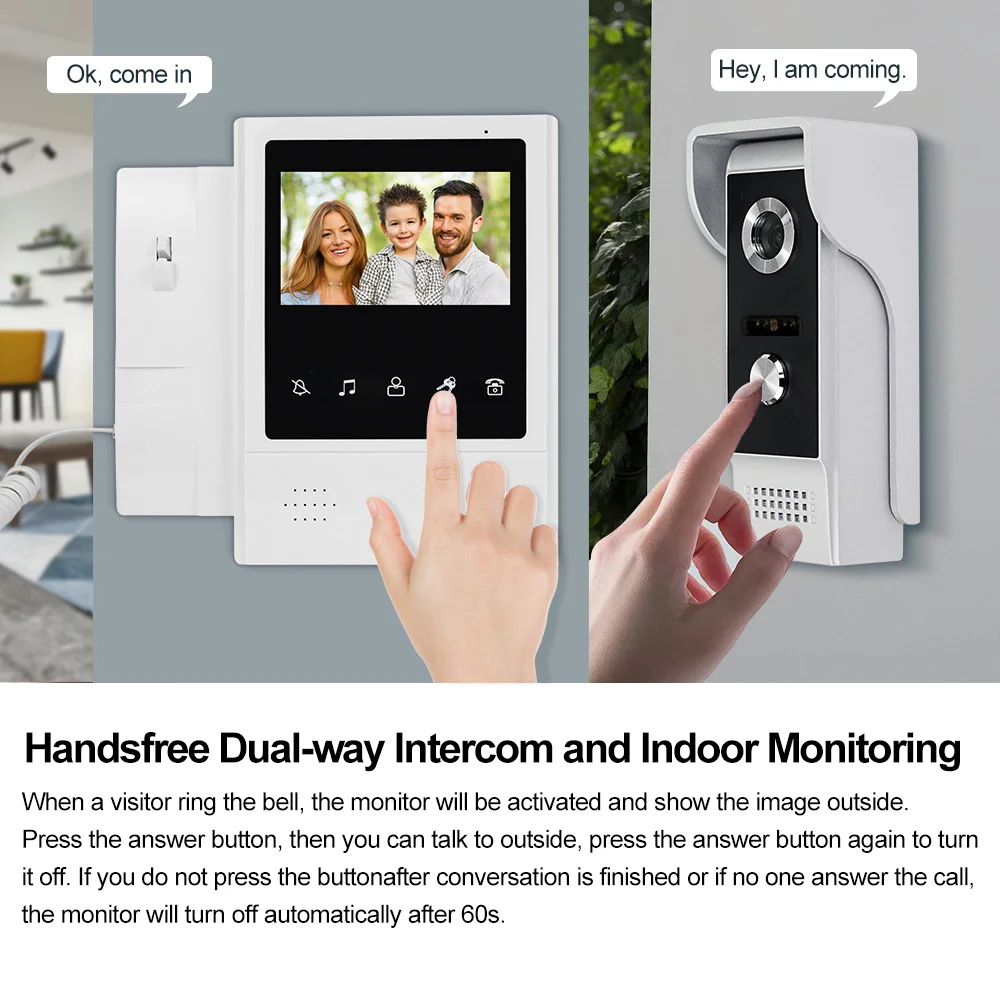

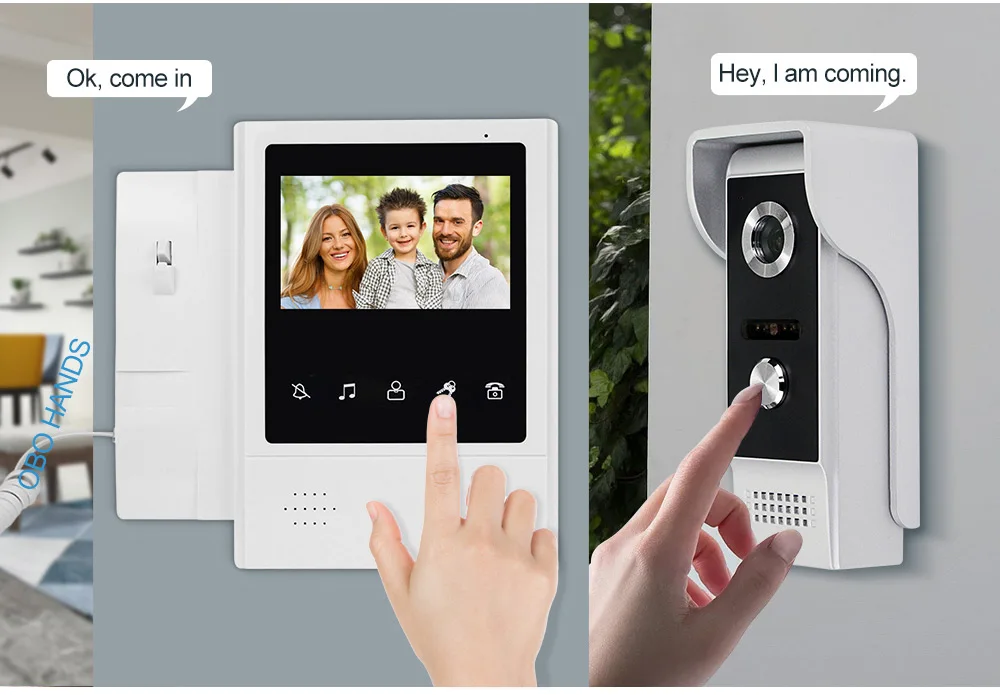

2. Handsfree Dual-way Intercom and Indoor Monitoring.
When a visitor ring the bell, the monitor will be activated and show the image outside, then you can see and hear outside. Press the answer button, then you can talk to outside, press the answer button again to turn it off. If you do not press the button after conversation is finished or if no one answer the call, the monitor will turn off automatically after 60s. It supports monitoring feature, press the monitoring button, you can see and hear outside situation.

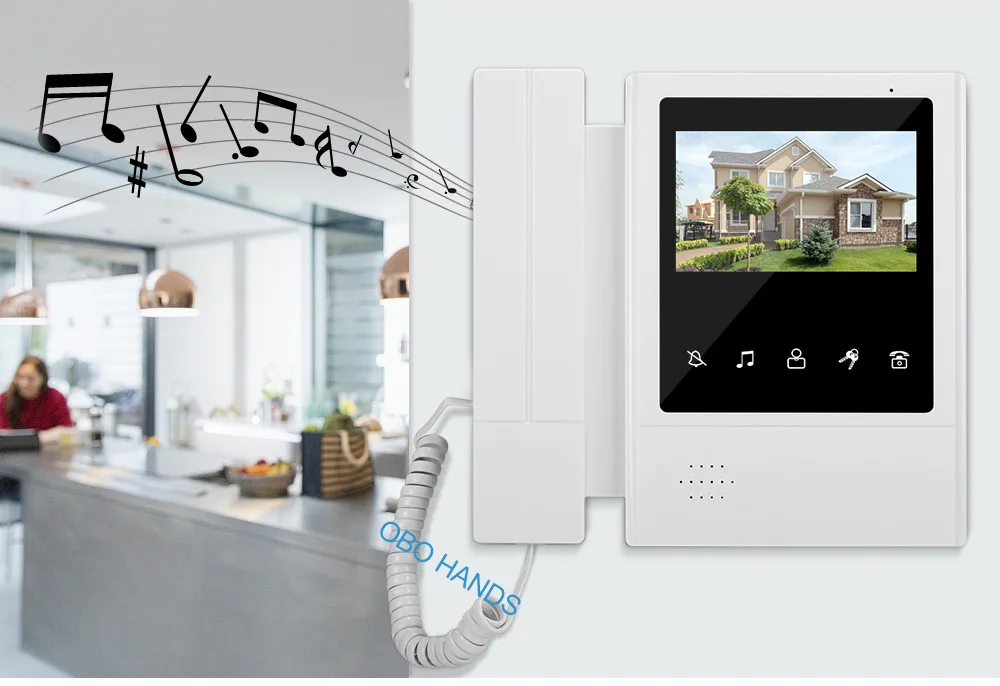

3. Multi-Ringtones.
There has 25 chord ringtones can be switched freely, elegantly and fair-sounding.
Both of the ringtones and volume can be adjustable, can meet the original needs of your time.
Don't need to worry about can't hear voice or hear it too loud any more.

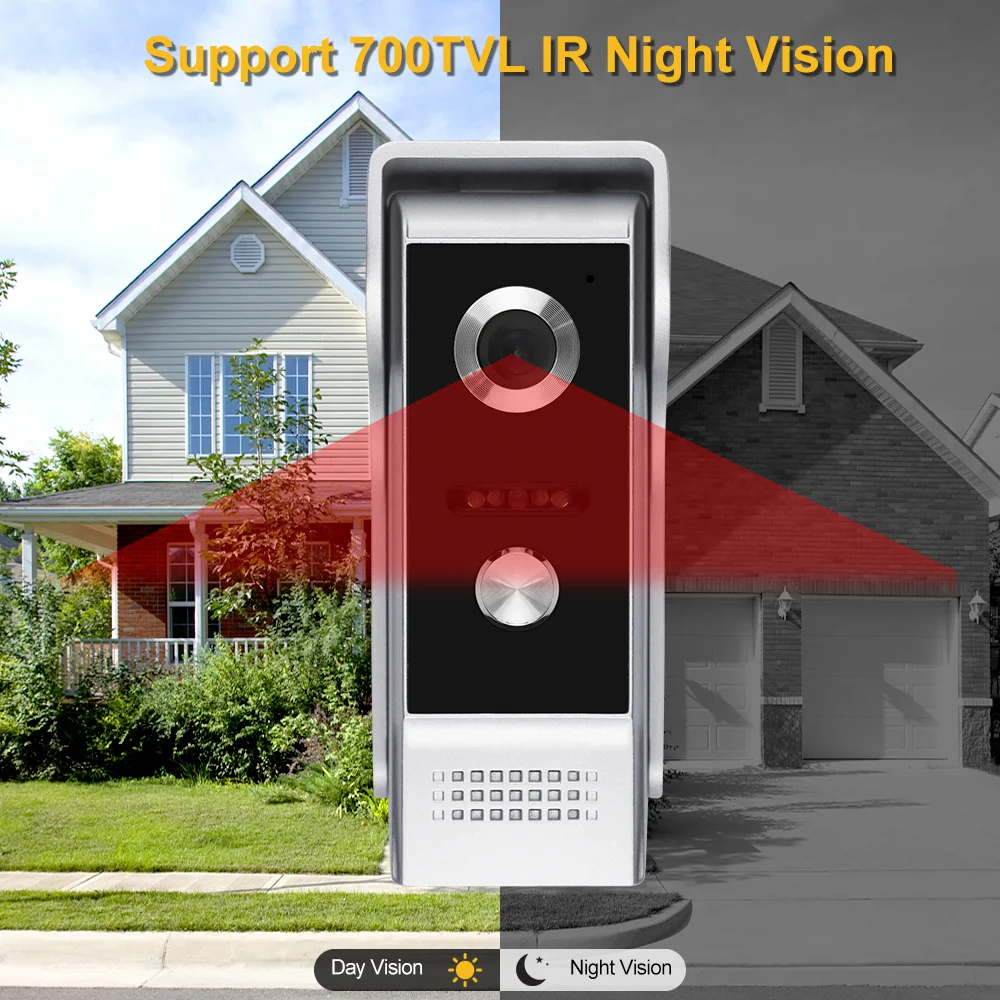

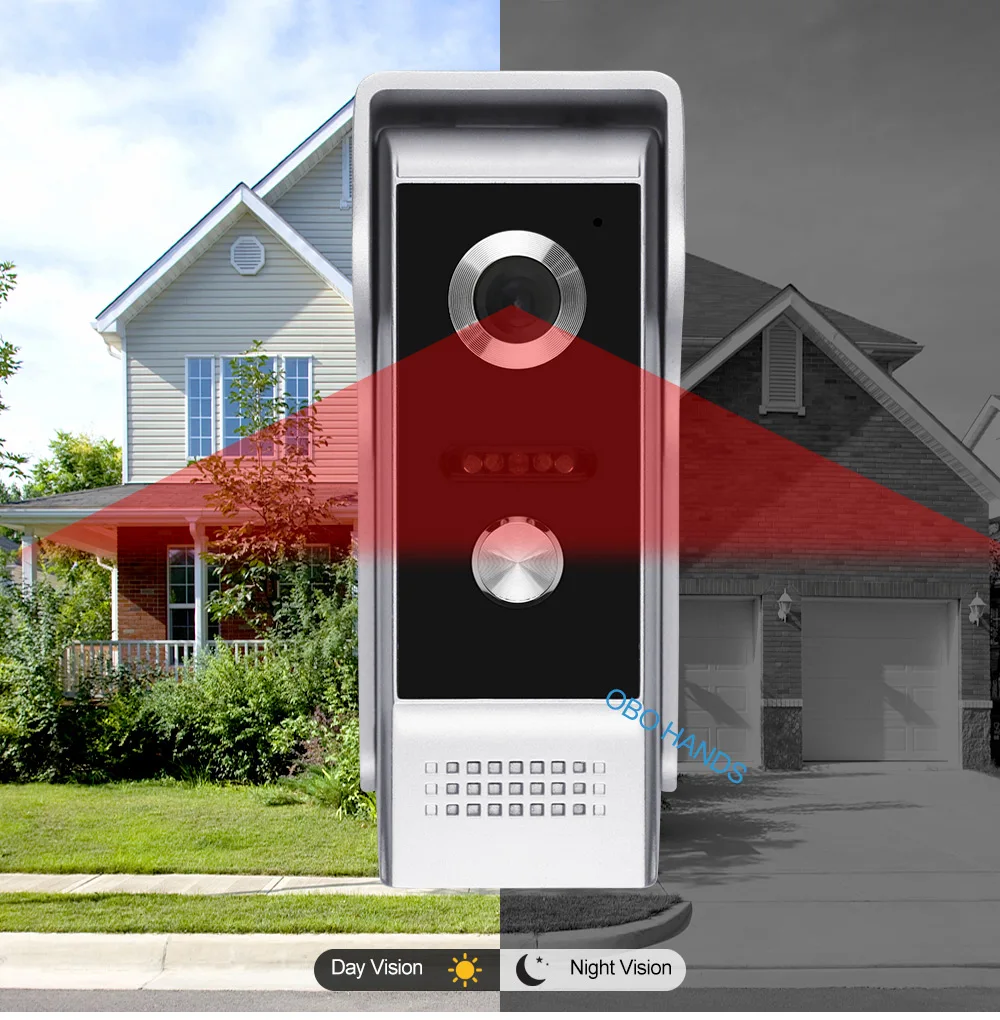

4. Support 700TVL Night Vision
The outdoor camera is builded in 4 white LED light.
With this function, you can see outside no matter day or night. Keep your house safer.

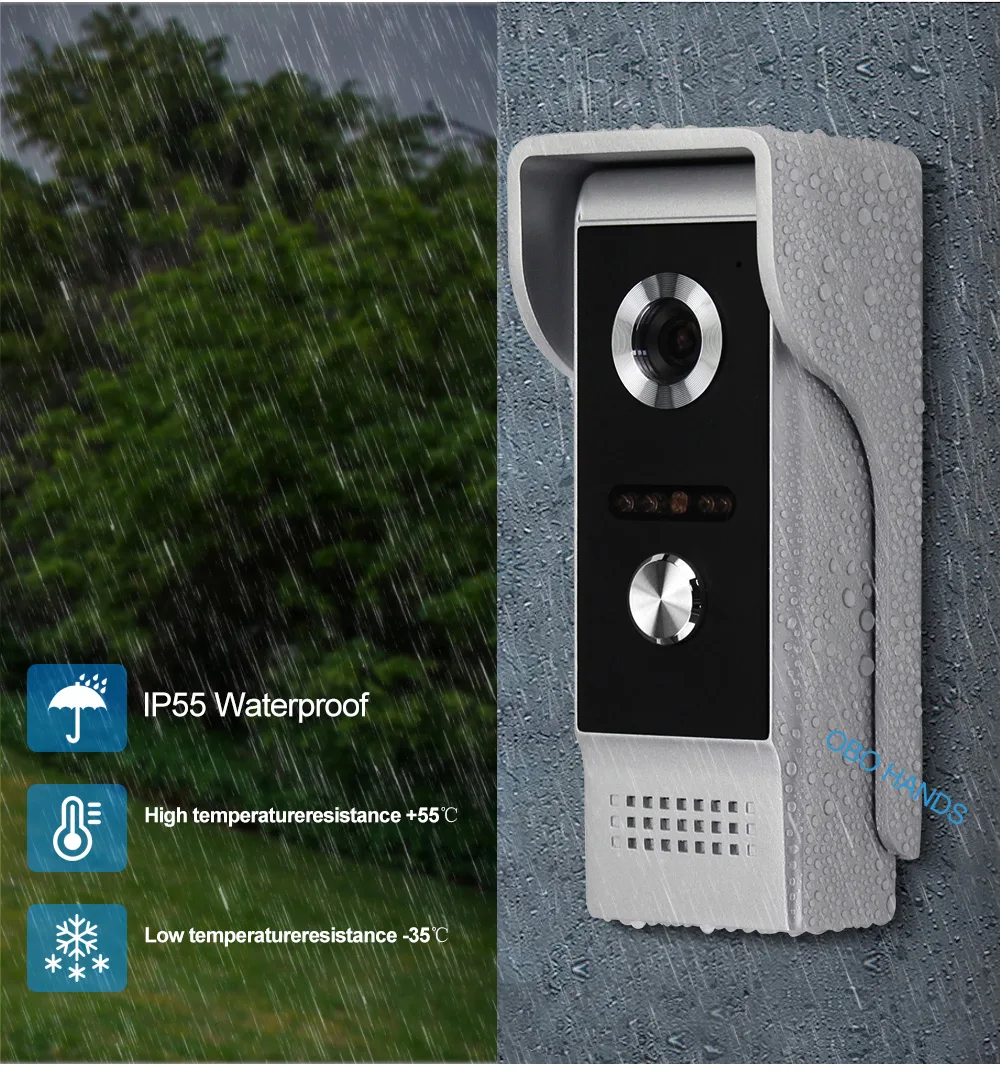

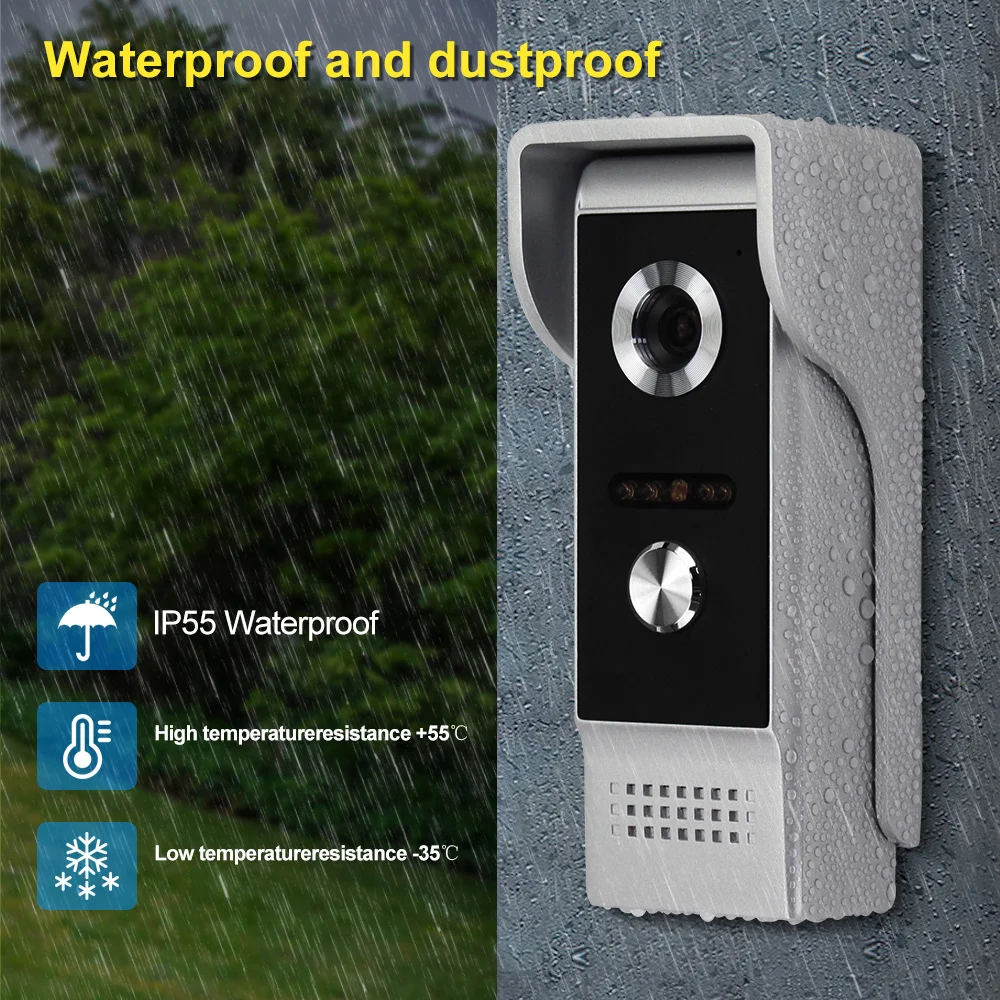

5. Waterproof and Dustproof
The outdoor camera is equipped with a waterproof cover, can be used outside even in very bad weather.
The waterproof level of the outdoor unit is IP54.

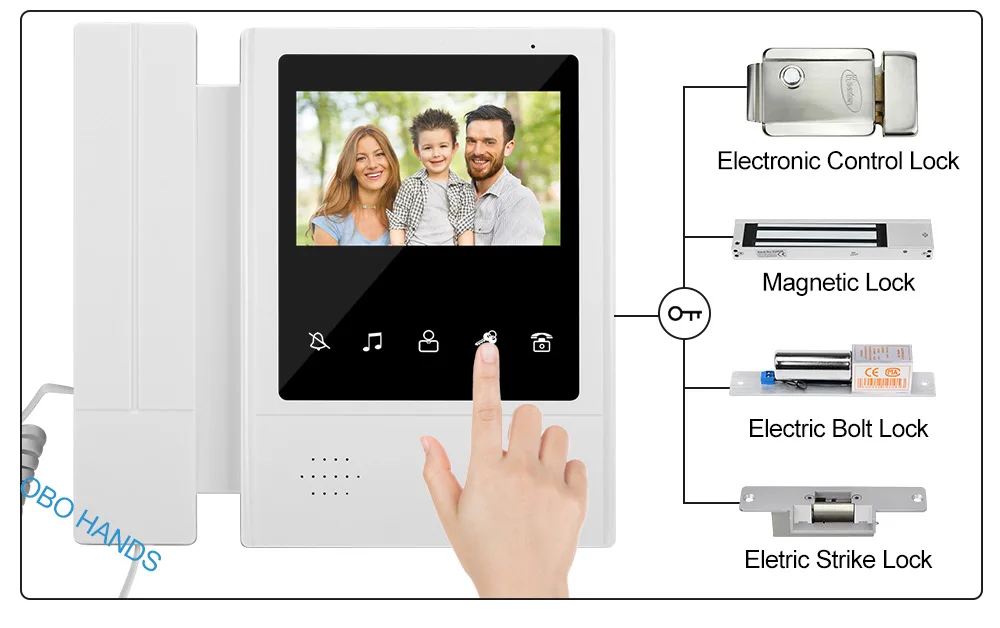

6. One key to unlock, can work together with Electrical lock.
This door phone can work with a DC 12V electric lock. But not all type of lock can connect directly to the outdoor camera. If you use electric magnetic lock, electric bolt lock or electric strike lock, please add a power supply control to connect the lock with this video intercom system.
With this function, you don't need go to the door to open door for your guest, you just need to press unlock button on monitor. It also works as an access control system. This will bring great convenience for you and your family members.
Notes: The electric locks which shown in below picture are not included in the package. If you need them, please contact us before order.

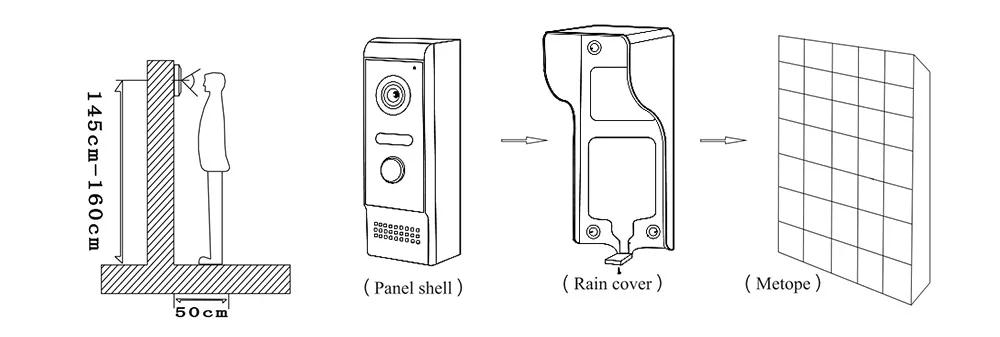

7. Outdoor Unit Standard Installation:
Height is 145cm~160cm (distance between camera and the floor)
Make sure that the camera lens is not pointing directly at the sun or at a reflective surface.
Product Analysis:
Multi-models for you to choose!
There are 4 different models for you to choose from. Please choose the suitable model according to your needs.

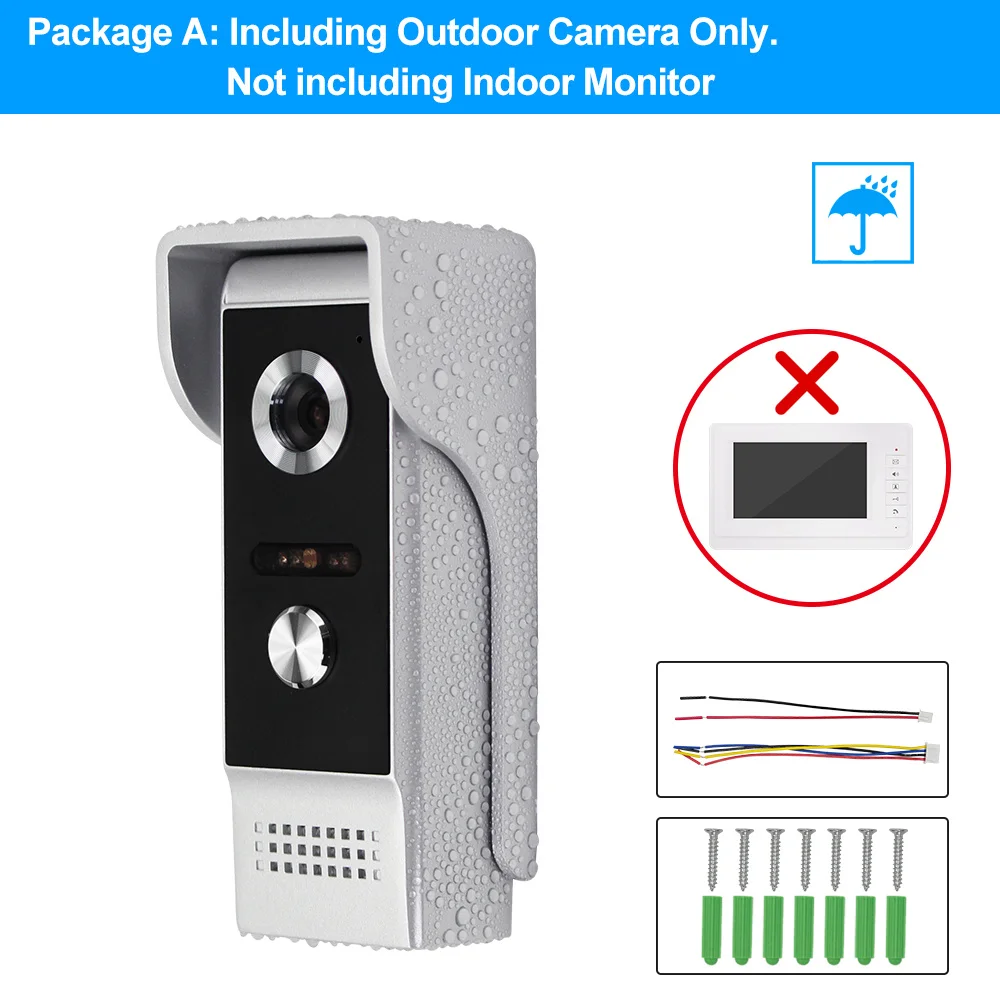

Package A: Outdoor Unit Only
This model is a outdoor unit (Camera) only. Doesn't include the indoor monitors. If you already have the indoor monitors, please choose this model.
But before ordering, please confirm this outdoor camera will be compatible with your own indoor monitor. Otherwise, they can not work together.
Package list:
1 * Outdoor unit
1 * Screws Bag

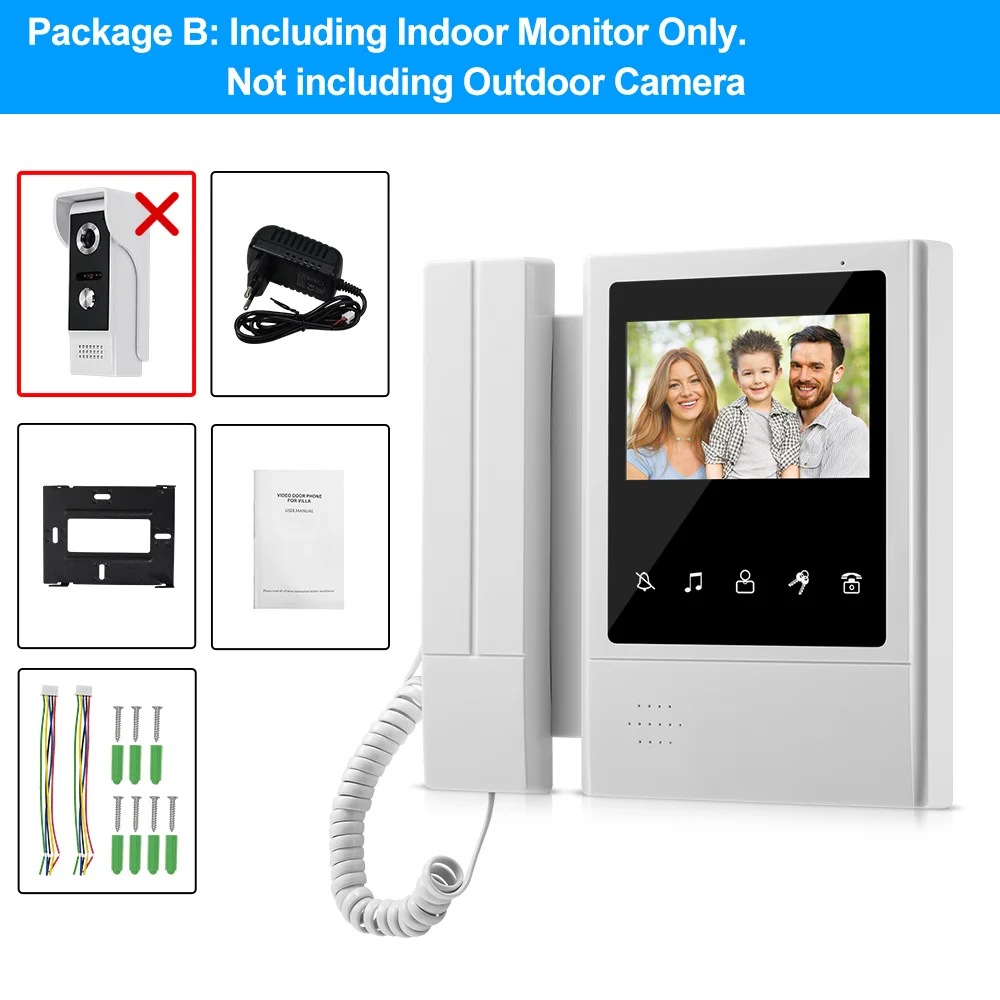

Package B: Indoor Monitor Only
This model is a indoor monitor (Screen) only. Doesn't include the outdoor unit. If you already have the outdoor unit, please choose this model.
But before ordering, please confirm this indoor monitor will be compatible with your own outdoor unit. Otherwise, they can not work together.
Package list:
1 * Indoor Monitor
1 * Mounting Plate
1 * Power Adapter (EU / US / UK / AU plug optional)
1 * Screws and Wires Connectors
1 * User Manual

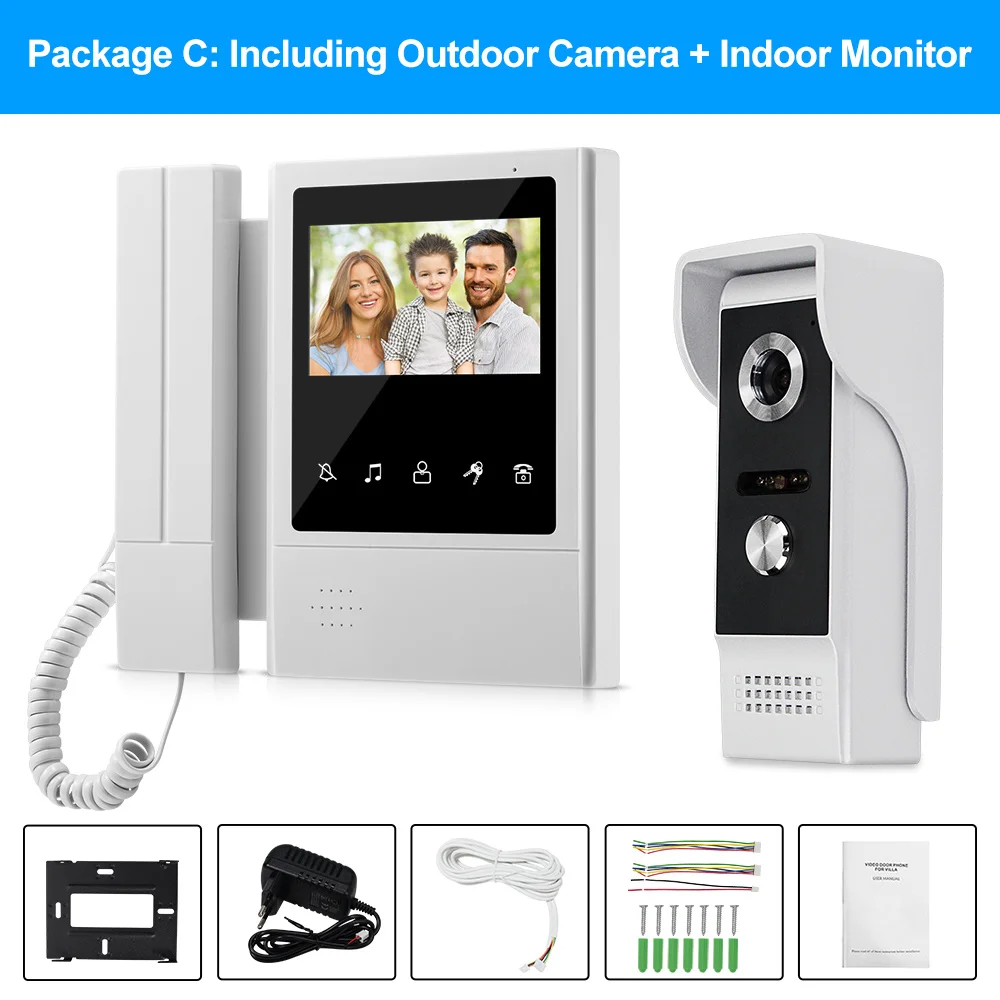

Package C: One Indoor Monitor with One Outdoor Unit
This model is a video doorbell intercom system kit with one indoor monitor and one outdoor unit.
Package list:
1 * Indoor Monitor
1 * Outdoor Unit
1 * Mounting Plate
1 * Power Adapter (EU / US / UK / AU plug optional)
1 * White Cable (About 4 meters)
1 * Bag of Screws and Wires Connectors
1 * User Manual

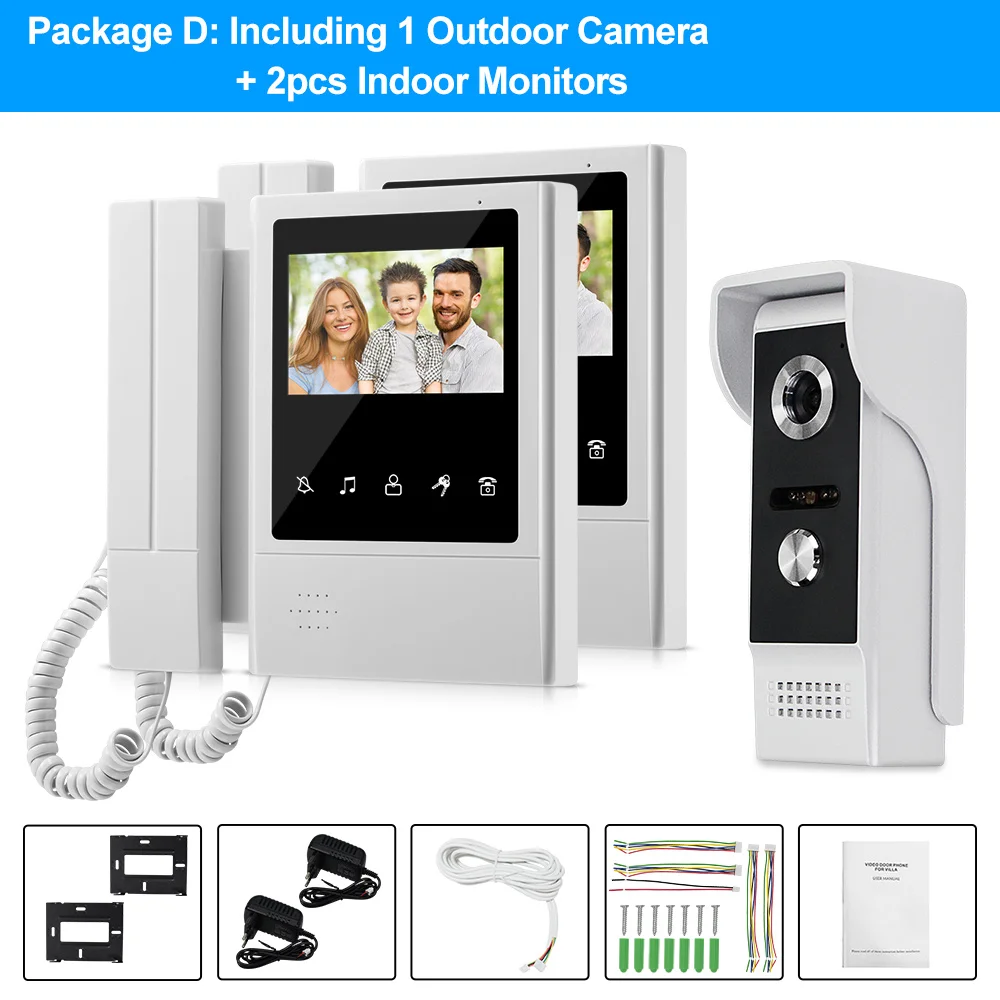

Package D: Two Indoor Monitors with One Outdoor Unit
This model is a video doorbell intercom system kit with two indoor monitors and one outdoor unit.
Package list:
2 * Indoor Monitor
1 * Outdoor Unit
2 * Mounting Plate
2 * Power Adapter (EU / US / UK / AU plug optional)
1 * White Cable (About 4 meters)
2 * Bag of Screws and Wires Connectors
1 * User Manual

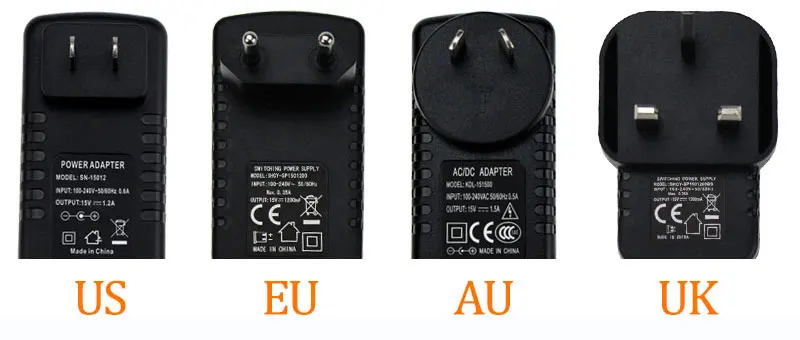

Please leave us a message which type of power adapter you need, otherwise we will send EU type of power adapter to you as default.

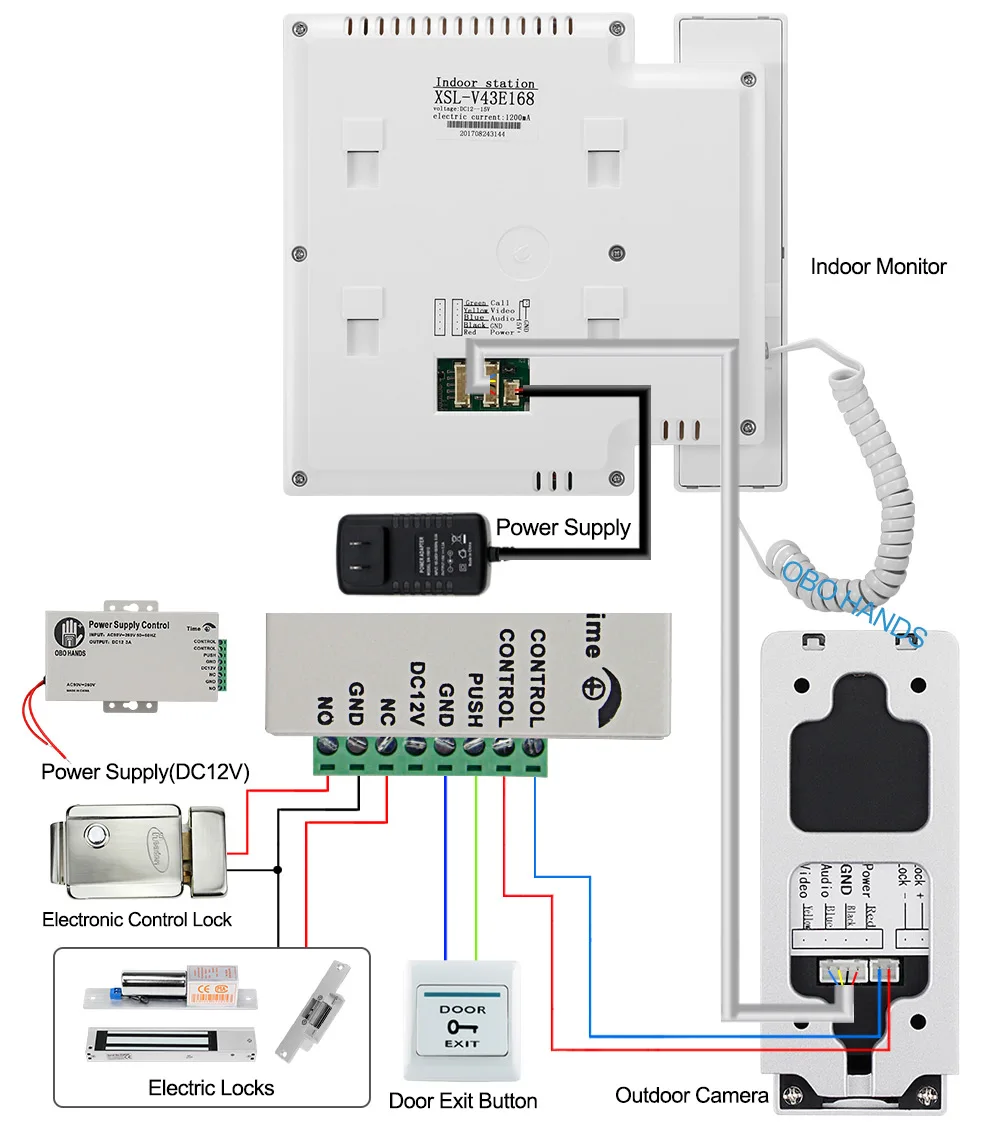

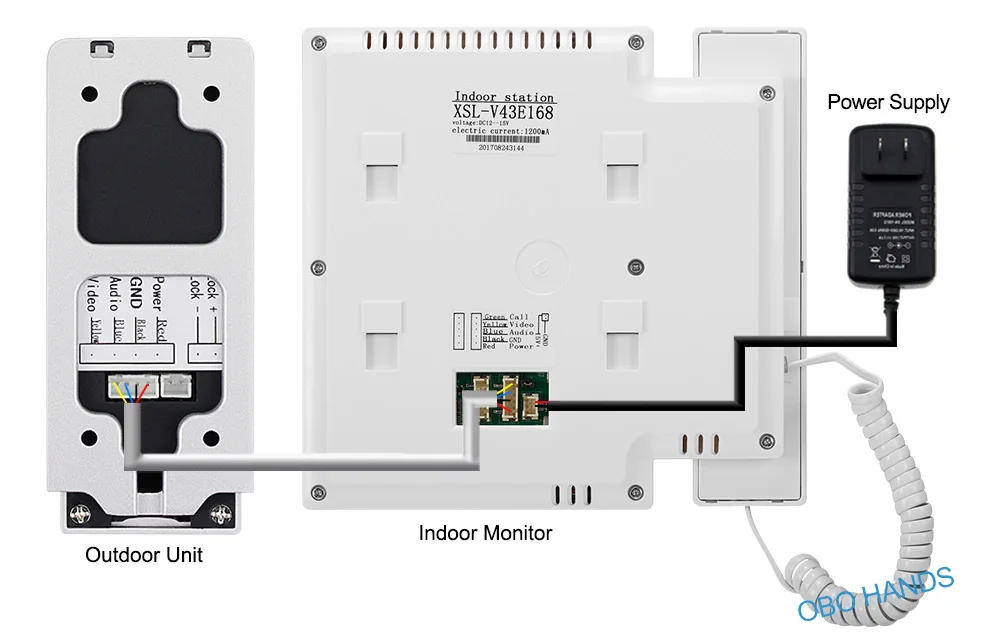

Wiring Diagram:
Before installing the device, we suggest you'd better use the original power adapter and cable to make a testing.
Please use the 4-core cable to connect outdoor unit to indoor monitor, then use the 5-core cable to connect the first indoor monitor to the second indoor monitor.

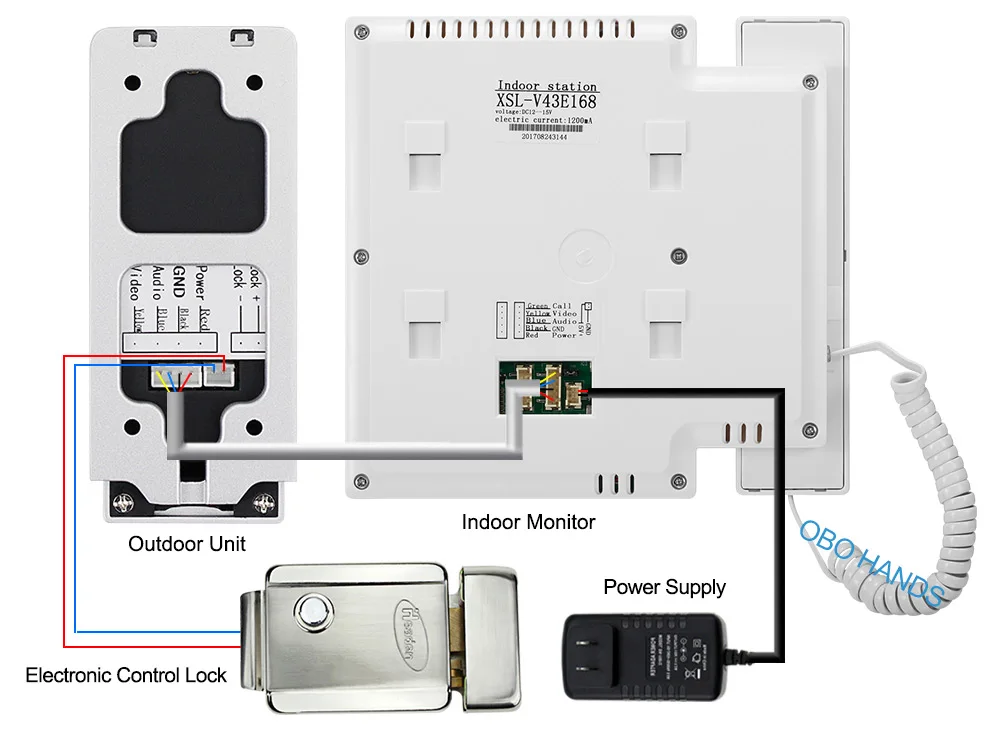

Different electric lock has different wiring connection. Please choose the correct wiring diagram based on the electric lock you used.
Additional information
| Hign-concerned Chemical | None |
|---|---|
| Plug Type | Eu plug,US PLUG,AU Plug,UK Plug |
| Size | 27*18*8.5cm |
| Doorbell | Yes |
| Material | ABS, Aluminum alloy |
| Power | 220v |
| Sensor Size(Inch) | 1/3 |
| Resolution | 800 * 480 |
| Camera | COLOR |
| Model Number | Digital High-definition WiFi Video Intercom |
| IP Camera Interface | No |
| Access Control | None |
| Waterproof | Yes |
| Samrt Home Interface | No |
| Technology | analog |
| Installation | Wall Mounting |
| Connection Type | Wired |
| Zone Input | None |
| Display Screen Type | COLOR |
| Type | intercom system |
| Viewing Angle (°) | 65 |
| Kit Configuration | One to Two video doorphone |
| Display Screen Size(inch) | 7 |
| Answering Mode | Handheld |
| Camera Sensor type | CMOS |
| Connection Method | Wired |
| Brand Name | OBO HANDS |
| Origin | Mainland China |
| Smart home platform | None |
| Certification | CE |
| Night Vision | IR night vision |
| Ringtone | 25 ringtones |
| Power Adapter | EU plug as default (EU/US/UK/AU for optional) |
| Volume of Ringtone | Adjustable |
| Volume of Intercom | Adjustable |
| Screen Brightness | Adjustable |
| Type 1 | Wired video doorbell intercom system |
| Type 2 | 4.3 inch Wired Video door phone |
| Type 3 | Smart Home Video doorphone |
| color |
