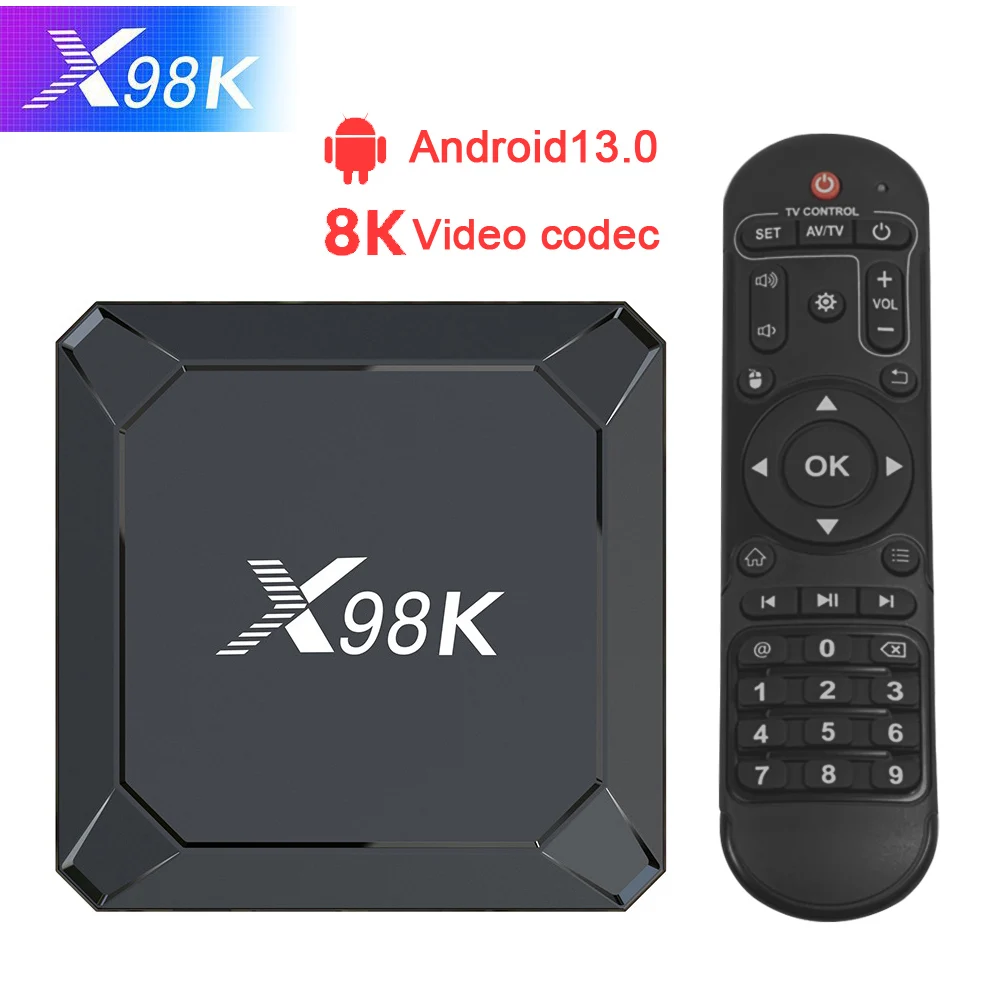

Smart Set Top Box Android 13 8K Streaming Media Player Network Set Top Box New X98K TV Box RK3528 Dual WiFi BT 5.0 Top Box

Plug Type

EU PLUG

US PLUG

UK Plug

Color

2G 16G

4G 32G

Clear

Description

Voltage range: High voltage (50-1000V DC, 75-1000V AC)
High-concerned chemical: None
Supported Internet Services: NETFLIX,YouTube
Remote controller included: Yes
Voice assistant built-in: No
Category: Set Top Box
Auto Frame Rate: No
HDR Standards: HDR10
Max Output: 4K @ 60 Hz
DVB-T2 tuner: Yes
Video Code: H.264/AVC,H.265/HEVC,VC1/WMV9,MPEG-2,MPEG-4
Audio Output: SPDIF out
USB Ports: 1x USB 3.0,2x USB 2.0
Wi-Fi Transmission Standard: 802.11ax,802.11ac,802.11b/g,802.11a
System: Android 13.0
Max. Extended Capacity: TF Card Up To 256GB
IPTV: Yes
GOOGLE Cast: No
System Upgrade: No
OTA Update: No
Power Source: Ac
Inbox adaptor: Yes
Weight: 0.4Kg
Ethernet: 100M
Wireless: Yes
Internal Storage: 16GB eMMC,32GB eMMC
Memory: 2 G DDR3,4 G DDR3
Bluetooth: Yes
Video Output: HDMI-Compatible 2.1
OS: Android
GPU: Penta-core ARM Mali-450 GPU up to 750MHz+ (DVFS)
Brand Name: X96
X96 Model: X98
CPU: Rockchip RK3528
Origin: Mainland China
Power Source: Ac
Power (W): DC 5V,2A
Certification: CE,FCC,UL
Remote Control: Included

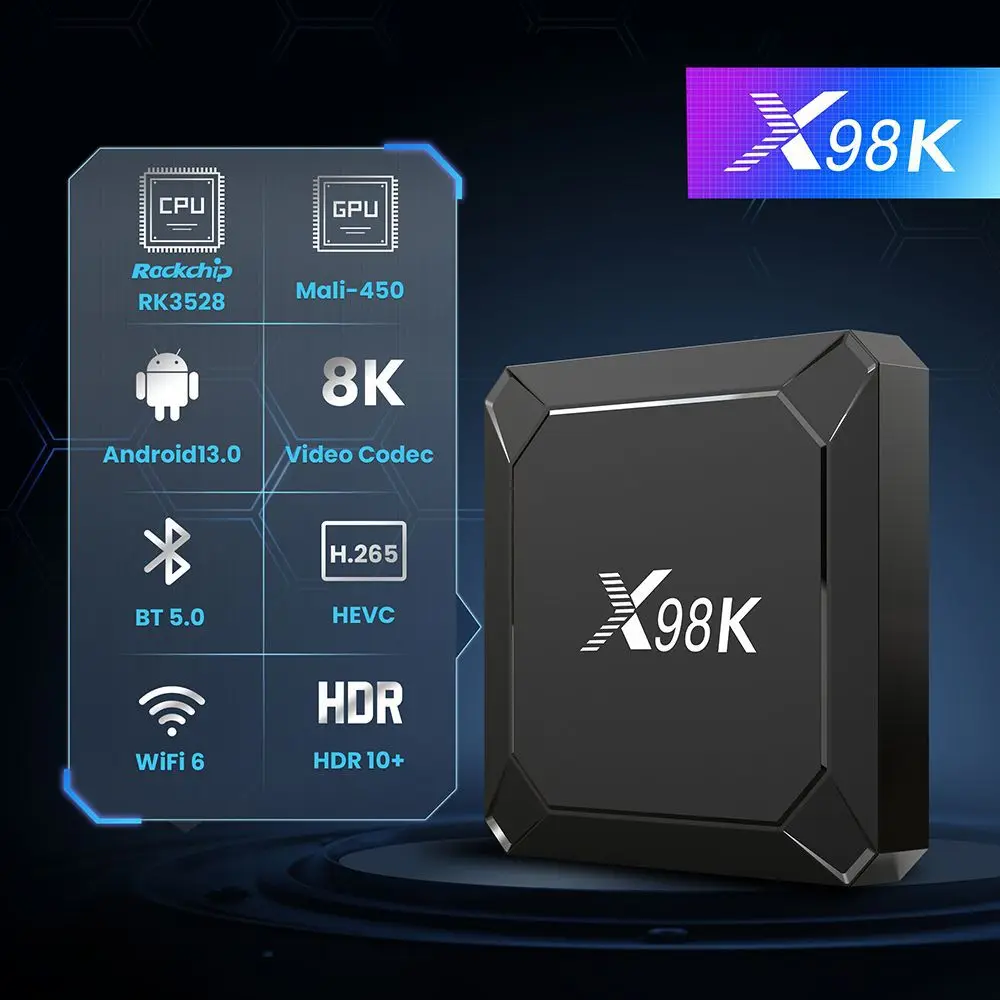

Basic parameters X98K
CPU	Chipset	RK3528
	Architecture	Quad Core ARM Cortex A53
GPU	Chipset	ARM Mali-450 GPU
	Architecture	OpenGL ES 1.1/2.0 and OpenVG 1.1 support
RAM	Capacity	2GB (4GB Optional)
ROM	Capacity	16GB (32/64/128GB Optional)
External storage	USB Storage Devices	Supported
	Micro SD card	Supported
Software

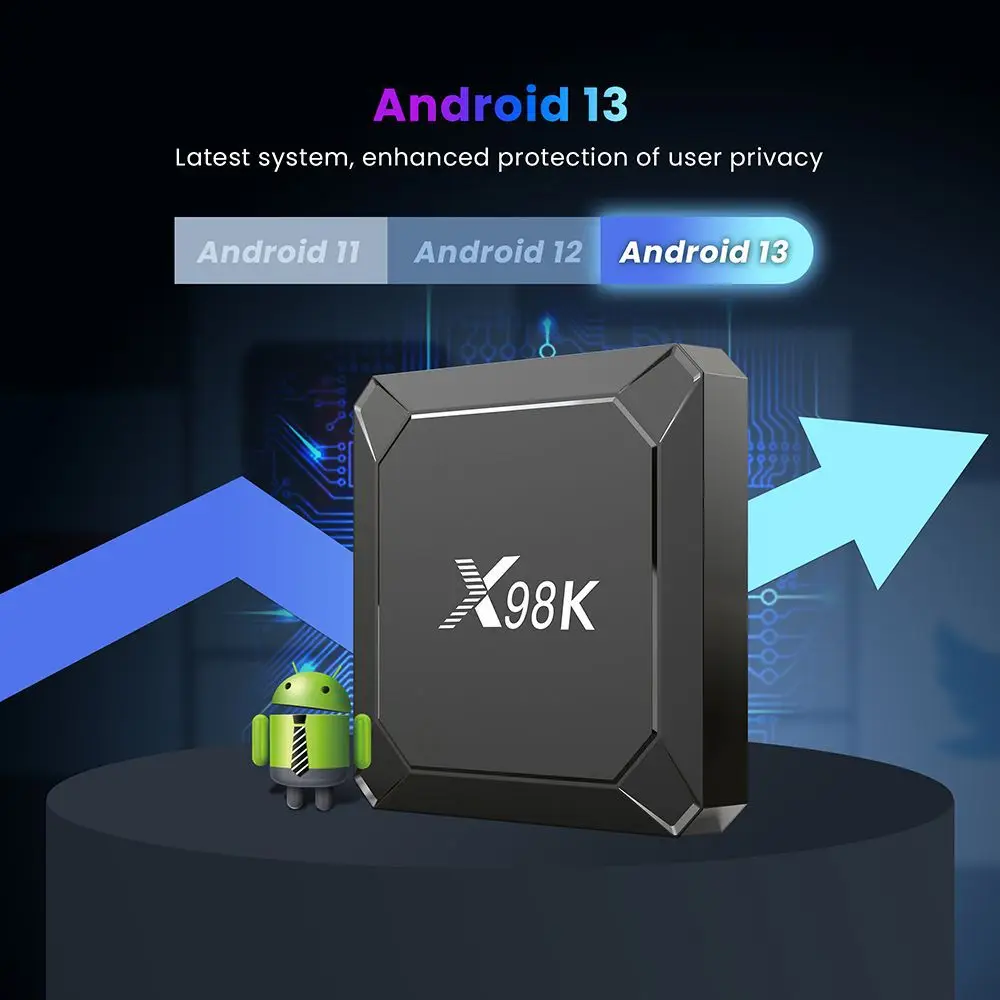

Operating system	OS Version	Android 13
	Language	Multi-Language
Multimedia	Video	* Video Decoder
		H.264/AVC BP/MP/HP profile @ level 5.1; H.264/AVC MVC; up to 4Kx2K @ 60fps
		H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K @ 60fps
		AVS2 4KX2K @60fps
		MPEG-1, Main profile, up to 1080P @ 60fps
		MPEG-2, SP@ML, MP@HL, up to 1080P @ 60fps
		MPEG-4, ASP profile @ level 5, up to 1080P @ 60fps
		AVS, Jizhun profile @ level 6.0; up to 1080P @ 60fps
		AVS-P16 (AVS+), up to 1080P @ 60fps
		H.263, up to 576P @ 60fps
		VC-1, SP@ML, MP@HL, AP@L0-3, up to 1080P @ 60fps
		* Video Encoder
		Support video encoder for H.264, HP@level4.2
		H.264 maximum frame rate is up to 1920×1080 @60fps
		Capable of encoding HEVC Main Profile @ L4.1 High-tier
		H.265 resolution and frame rate are up to 1920×1080 @60fps
		JPEG encoder included
	Audio	Serial Audio Interface
		SPDIF
		Audio CODEC
	Image	HD JPEG、BMP、GIF、PNG、TIF
Network service
Wi-Fi	Type	Support WiFi IEEE 802.11 b / g / n / ac / ax
	Frequency	Support 2.4GHz/5GHz WiFi 6
	Antenna Type	Single antennas
Bluetooth	Bluetooth	Support BT5.X

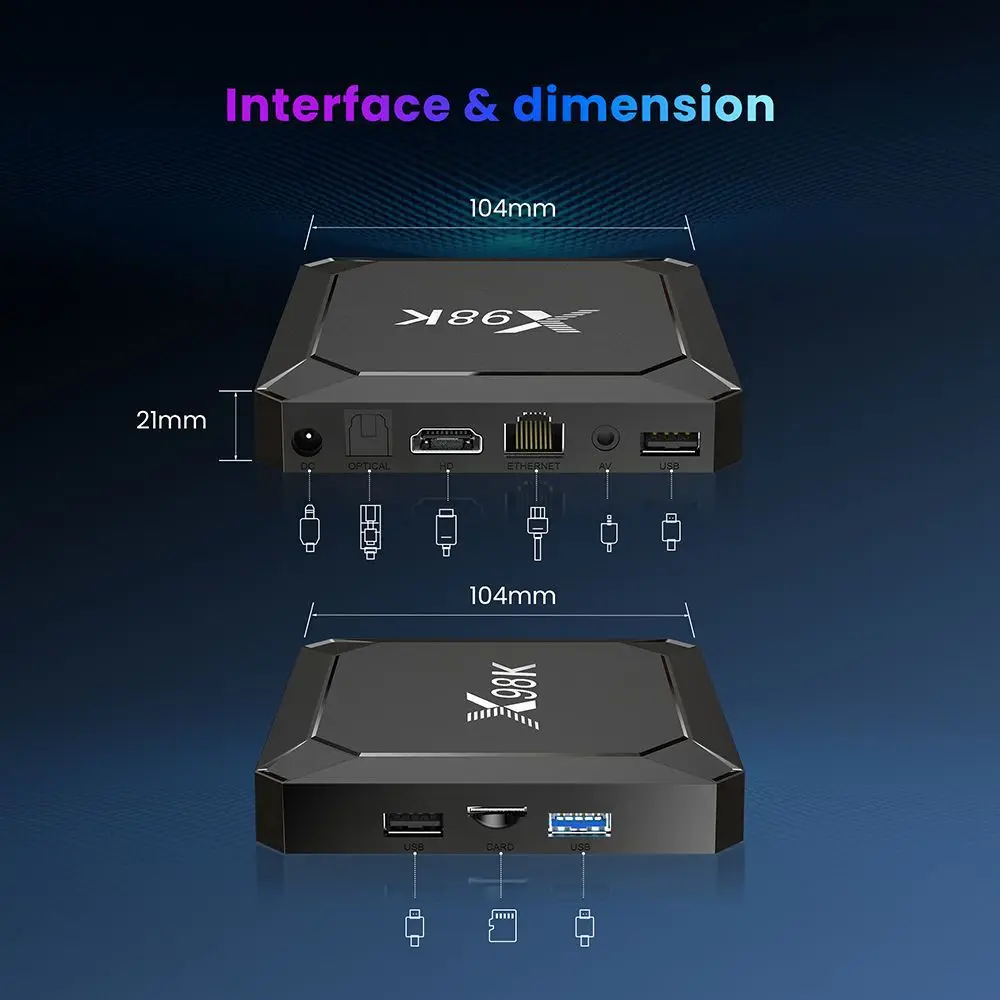

Interface
Charge	DC connector	DC IN(5V/2A)
Video output	HD	4K*2K UHD Output, HD 1.4/2.X
IR Reciver	On board	Remote Reciver Connect
Micro SD	External memory	Support

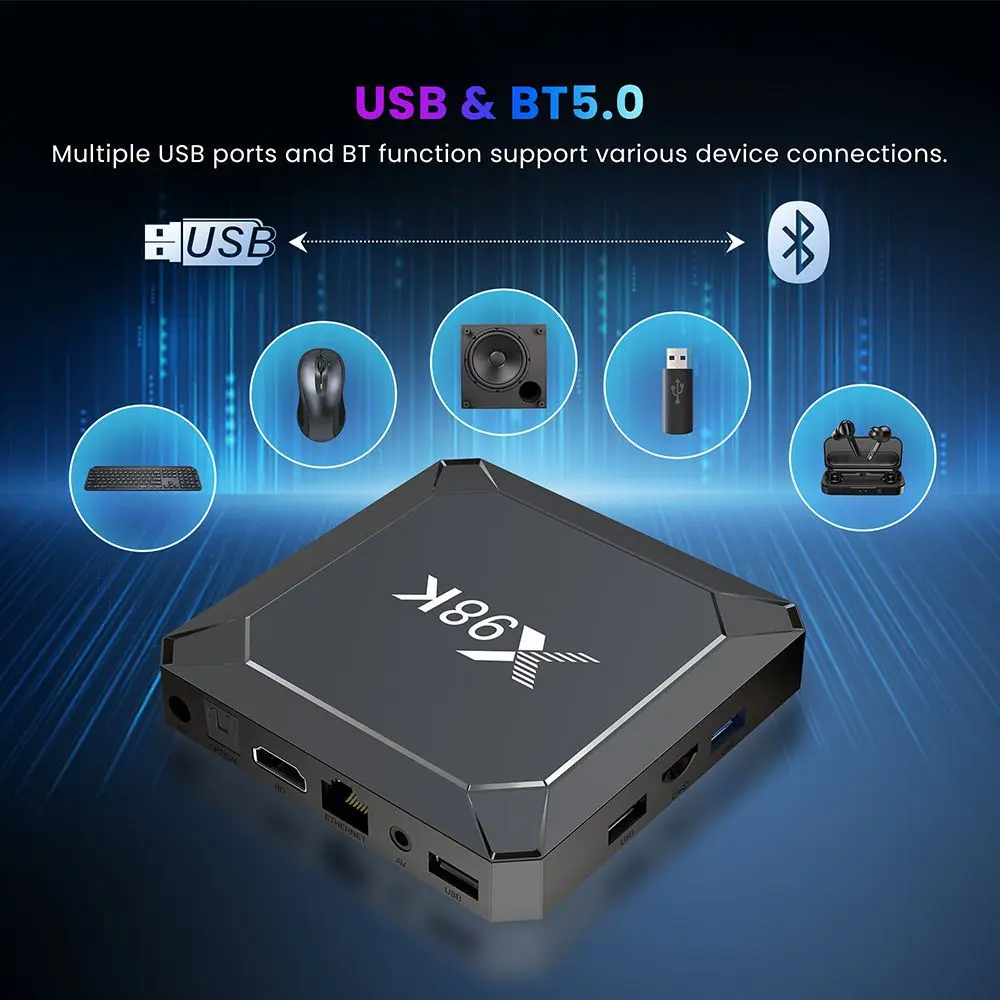

USB port	USB host	USB3.0 1 USB2.0 2
Ethernet	Ethernet	100M Ethernet（1000M Optional)

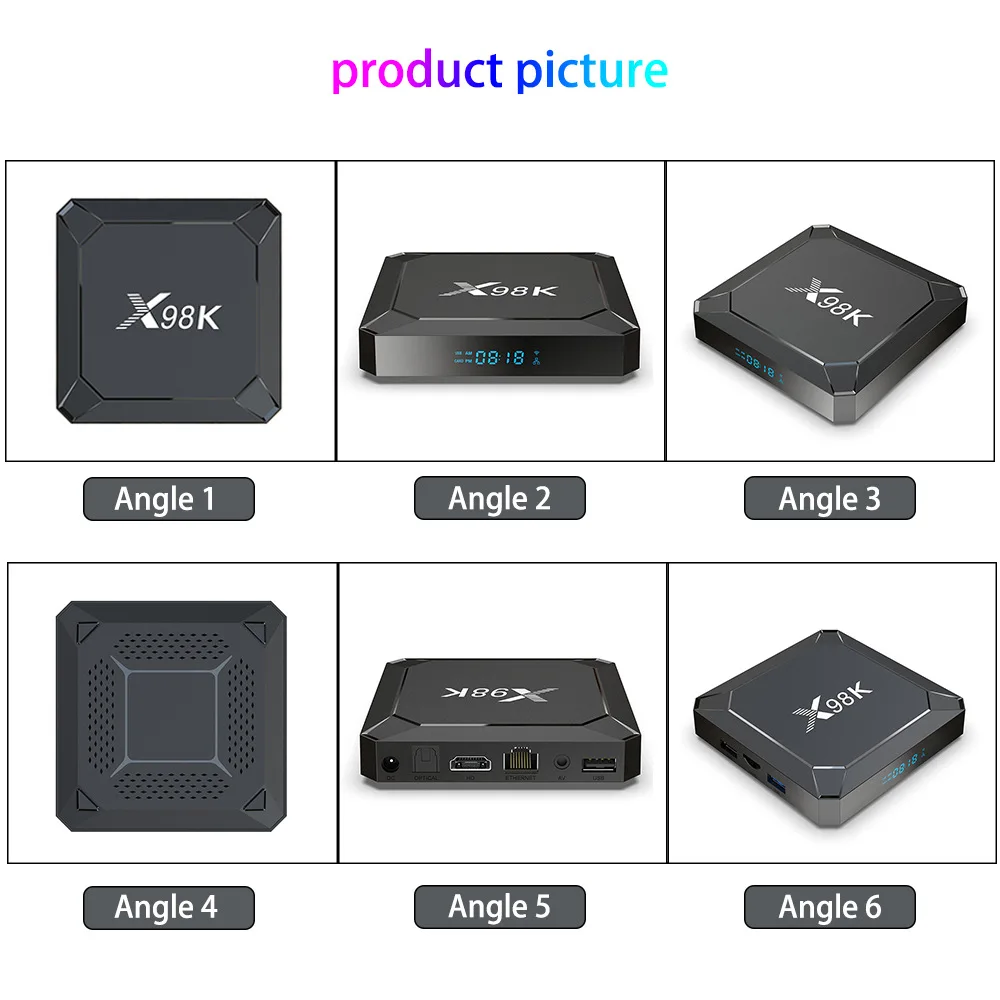

Appearance
Body Material	Plastic
Color	Black
Size	10510518.5mm
Weight	/
Cerifications(For Unit)
Standard	/
	/
Others	Optional

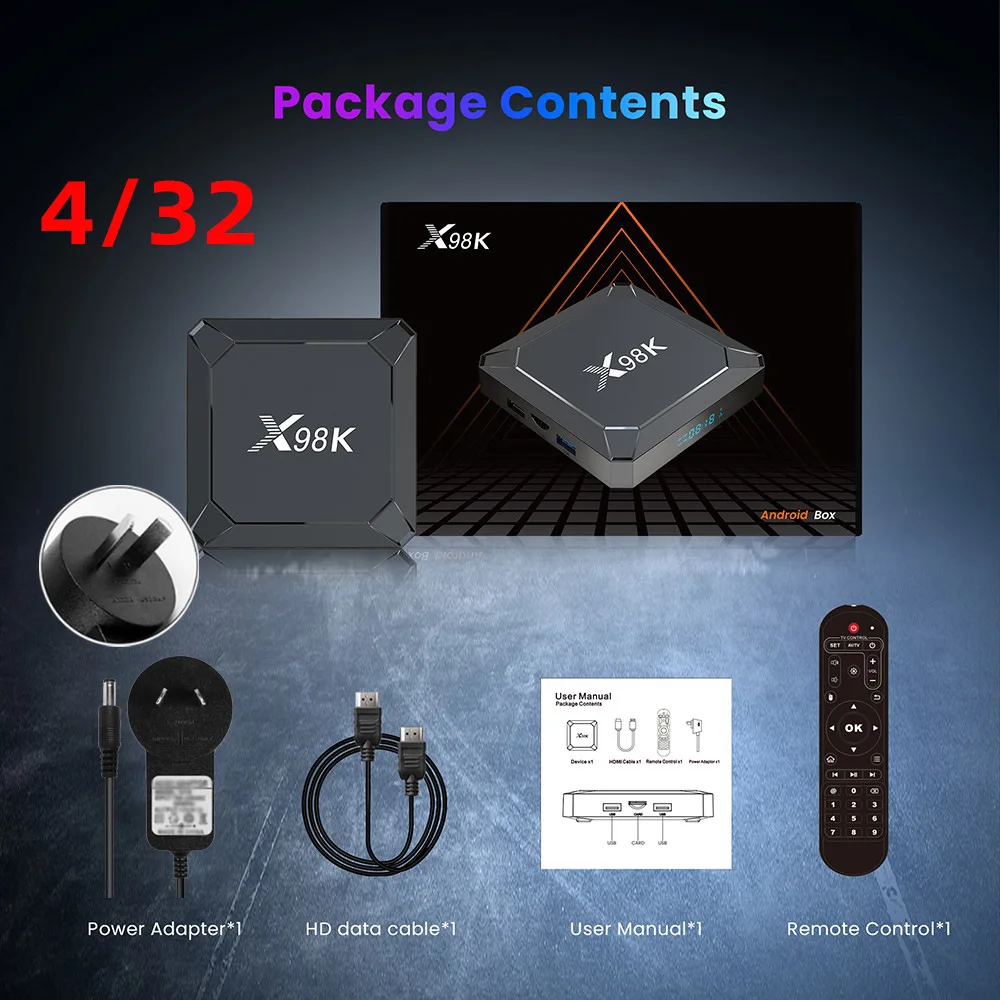

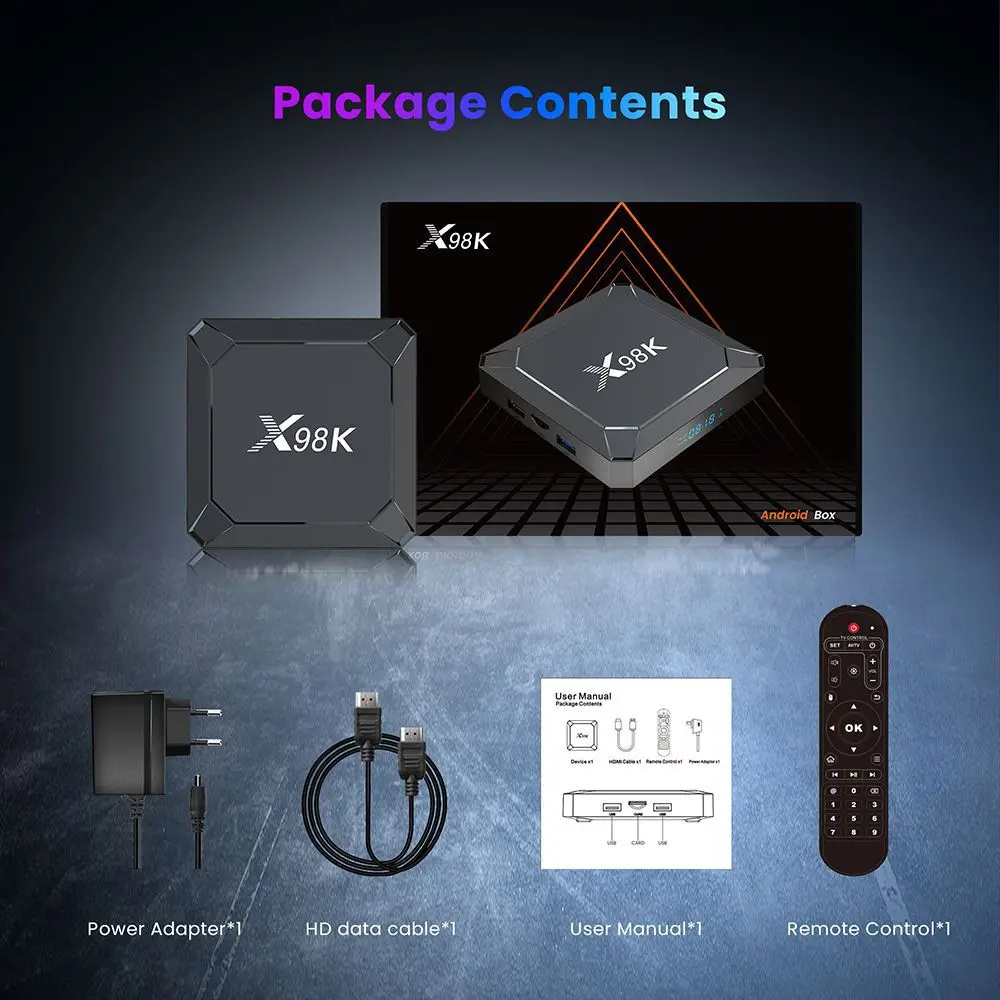

Package contents		Shipping Info
User manual	*1	Gift Box Dimension(mm)	20514050mm
Gift Box	*1	Carton Size(mm)	420270305 (mm）
Remote control	*1	Qty Per Carton(pcs)	20
HD external cable	*1	Gift Box.G.W(gs)	0.4Kg
Power adapter	*1	Export carton (G.W.)(kgs)	8.5Kg

The product has obtained excellent qualifications and has received unanimous praise from other domestic e-commerce platforms.

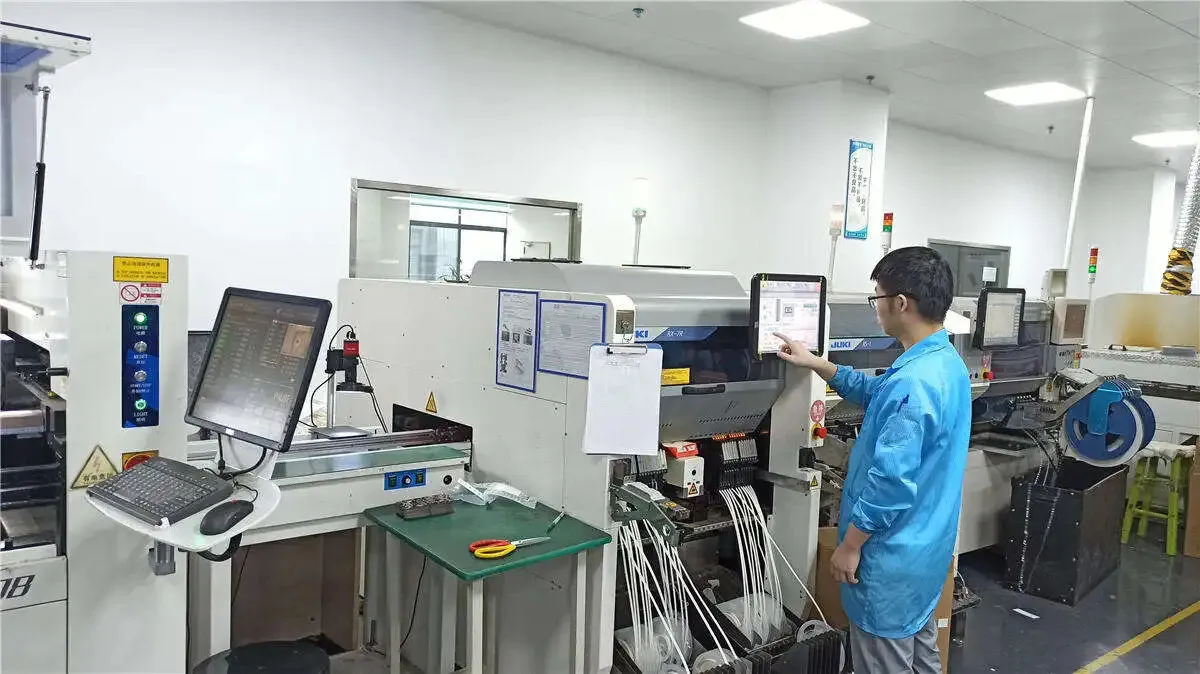

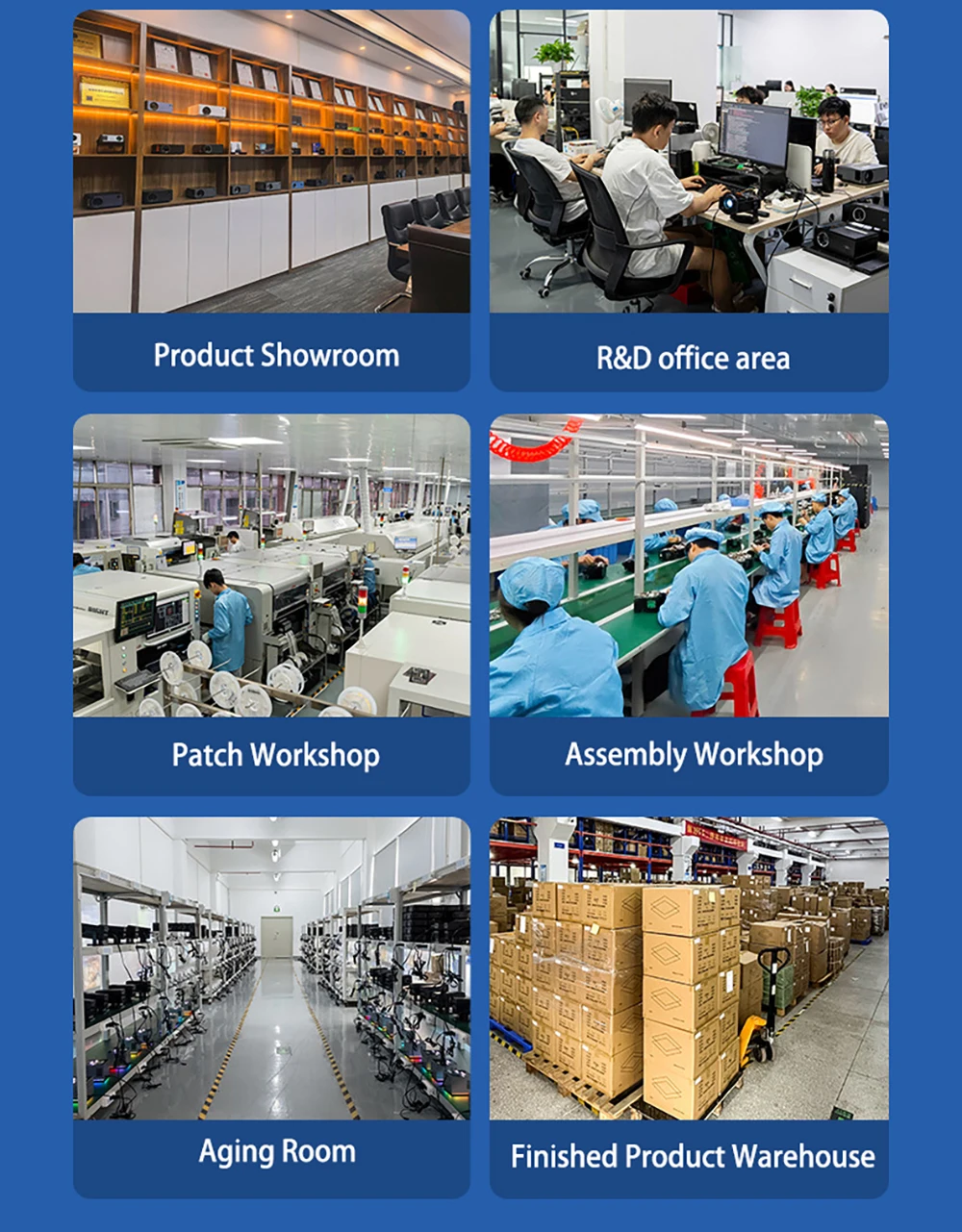

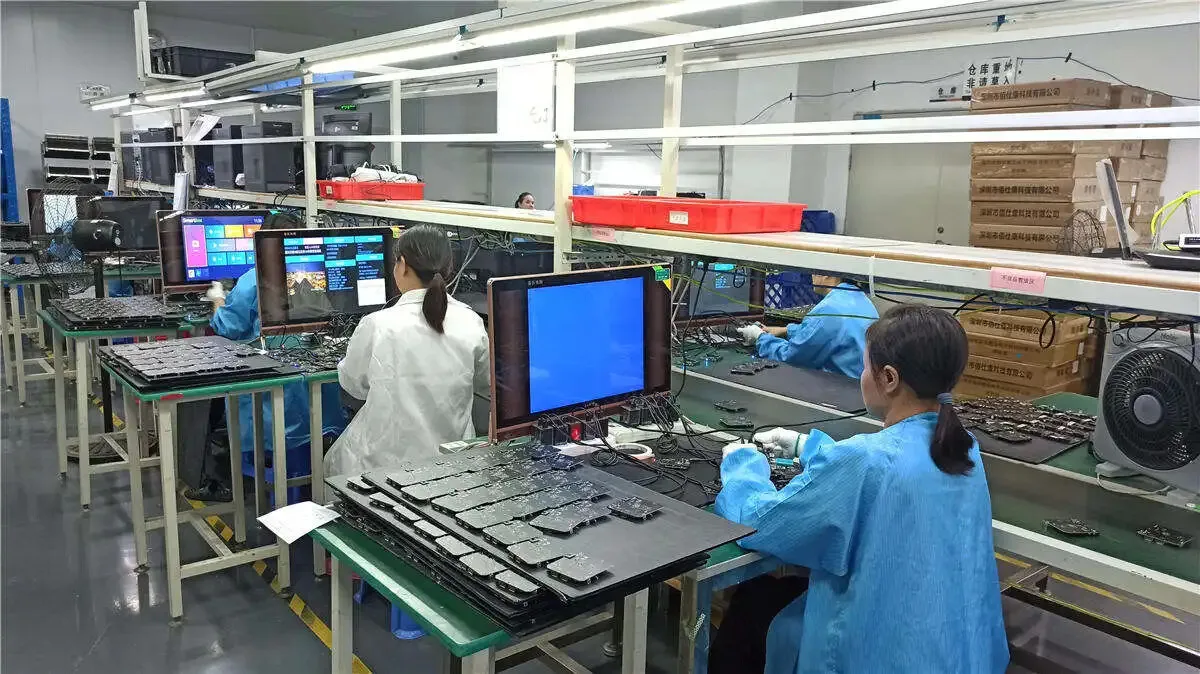

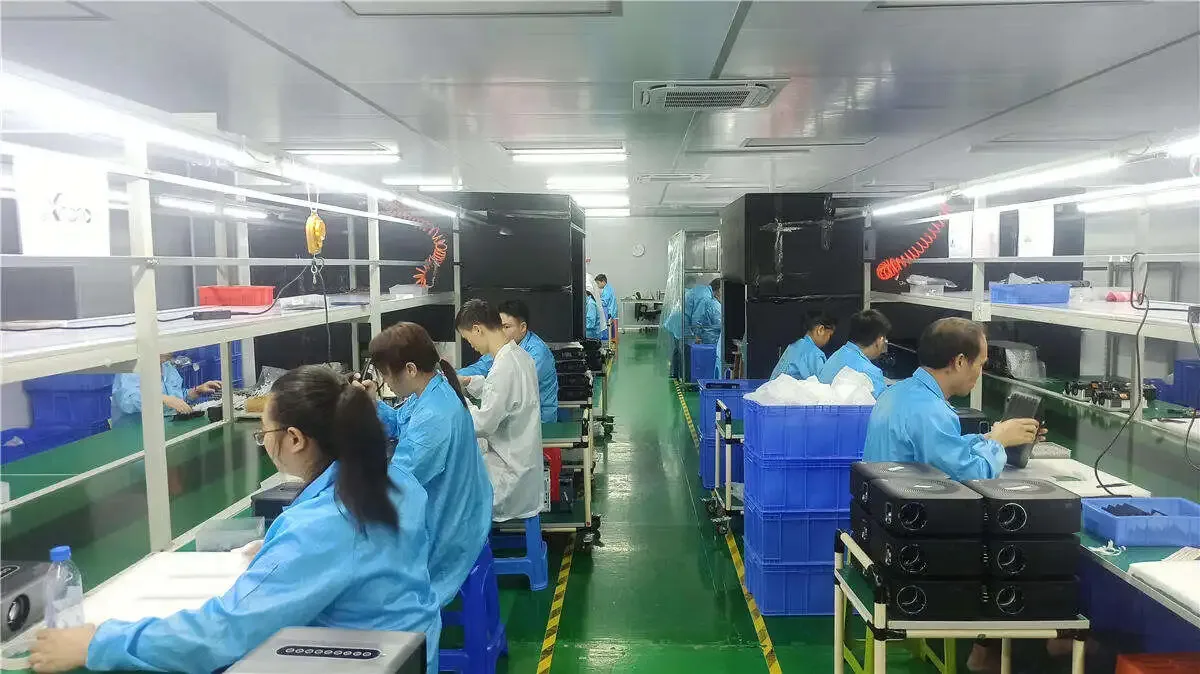

Our high-quality factory has advanced equipment and a clear division of labor. After the products are produced, they are continuously tested and only qualified will they be shipped out of the factory. This ensures that they are of the best quality when delivered to customers.
