Staniot 433MHz Vibration Sensor Door Window Detection SOS Button Accessories Security Protection For Smart Home Alarm System

Description

High-concerned chemical: None
Model Number: DS050
Brand Name: staniot
Origin: Mainland China
Certification: CE,RoHS
Smart home platform: Tuya
Feature 1: Door open alarm
Feature 2: Vibration detection
Feature 3: SOS button
Compatible: Staniot Home Security System
Wireless parameters: 433MHz, eV1527
Wireless transmission distance: About 100m (Open area)
Easy installation: It fits on all types of doors and windows

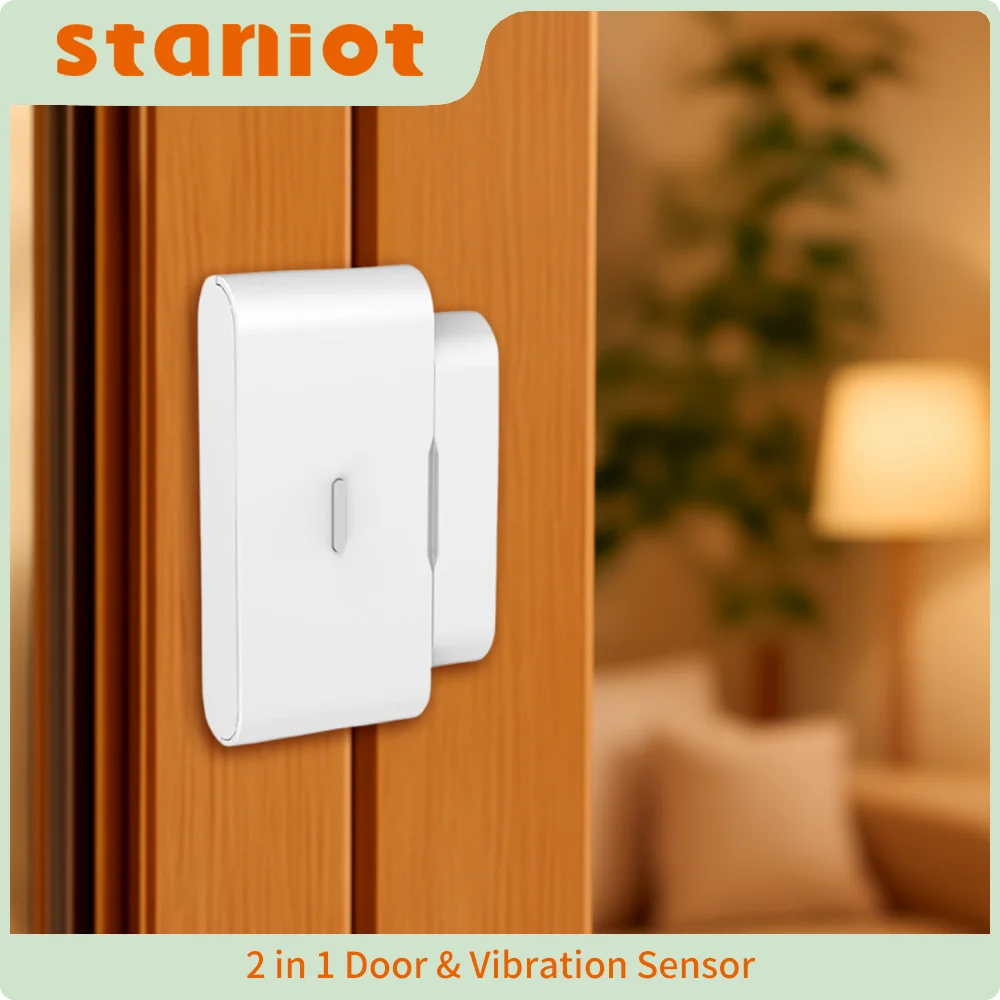

2 in 1 Vibration & Door Window Sensor

Notice:

1. It needs to work with alarm panel together, can’t work alone.

1） Radio frequency：433 MHz

2） Encoder IC：eV1527

3 Types of Triggering Methods

1.Door open alarm 2. Vibration Detection 3. SOS button

Door open trigger

When the sensor detects separation from the magnetic strip, it sends a signal to the alarm host.

Vibration trigger

When the sensor detects vibration or window/door breakageit sends a signal to the alarm host.

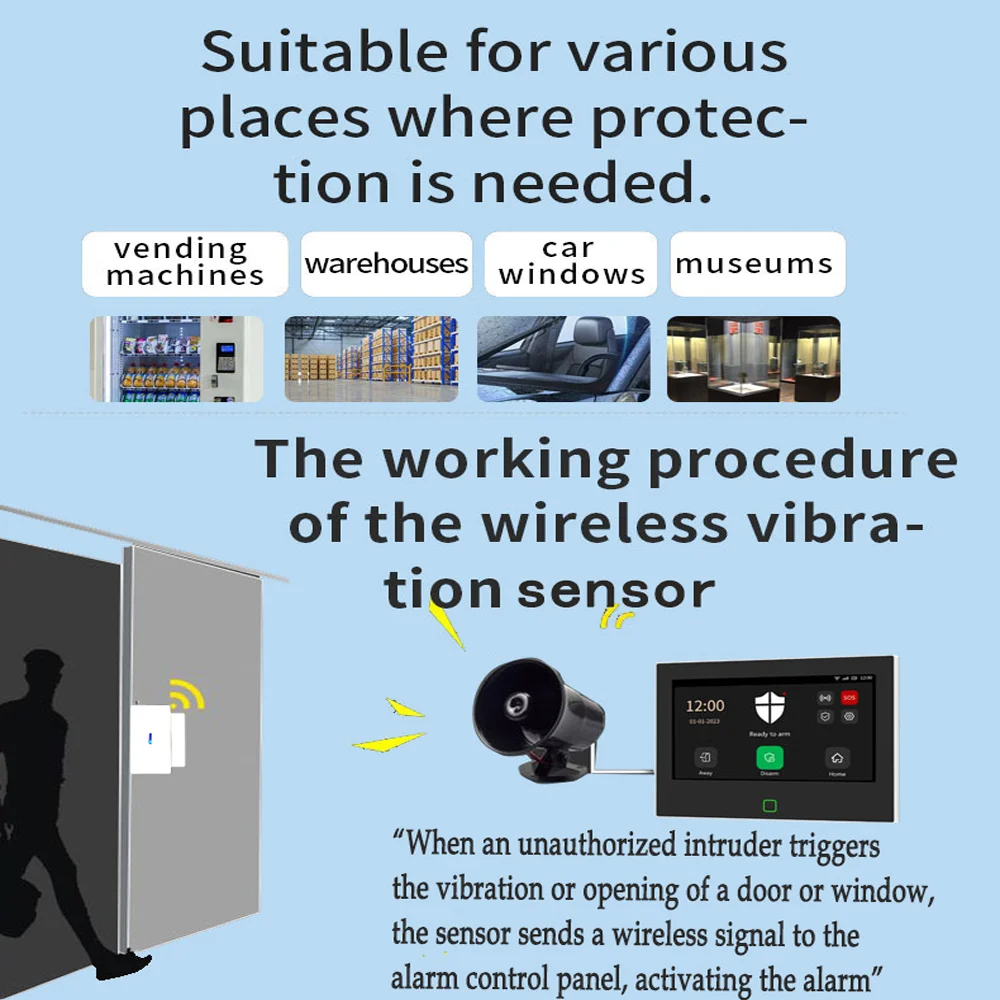

Suitable for all occasions

Suitable for a variety of places that need to be protected from being touched, such as vending machines, warehouses, car windows, and museums.

It needs to work with alarm panel together, can’t work alone.

When the glass receives an external intrusion, the alarm panel will receive the information and issue an alarm.

At the same time, the mobile APP is connected to the alarm panel and can also receive information reminders.

Hidden SOS button integrated with LED light

User can add the SOS button signal to alarm panel in advance (please change the zone type to emergency zone). If they are in danger, they can press this hidden button for SOS help.

Application

Windows, safes, glass doors, bedside table.

1.Wireless signal frequency and protocol:433.92MHz/1527

2.Wireless transmission distance：≥100 meters outdoor in open space

3.Power supply:1*3V CR2032 button battery

1.The sensor not only accurately monitors vibrations or glass breakage on doors and windows, but also monitors unauthorized opeing of doors and windows. Once triggered, the sensor sends a 433MHz wireless signal to the alarm host, which then activates the alarm. It must be useed with a 433MHz alarm host or Wi-Fi gateway and cannot operate independently.

2.lt supports 5 levels of vibration sensitivity adjustment,minimizing false alarms caused by irrelevant vibrations such as wind or noise.

The steps to adjust the vibration sensor are as follows:

1. Press and hold the setting button for 5 seconds. After the red and blue lights start flashing, release the setting button. (The number of flashes represents the current sensitivity level of the detector)

2. Press the setting button again to enter the next sensitivity level. At the same time, the red and blue lights will flash a corresponding number of times to indicate the current sensitivity level. Similarly, the product supports up to 5 levels of sensitivity adjustment.

Level 1: Trigger by slight vibration (default level)

Level 2: Trigger by knocking, opening the window will not trigger

Level 3: Trigger by strong knocking at a long distance

Level 4: Trigger by strong knocking at a close distance

Level 5: Trigger by gravity knocking at a close distance

Additional information

Color	2 in 1 Door Sensor
